Wiz750SR-ZYNQ_RGB_controller

Serial to Ethernet connectity to a ZYNQ FPGA for RGB LED control.

irina

Published November 01, 2023

Original author: Q-pointOriginal source (new tab)

Wiz750SR-ZYNQ_RGB_controller

Project description

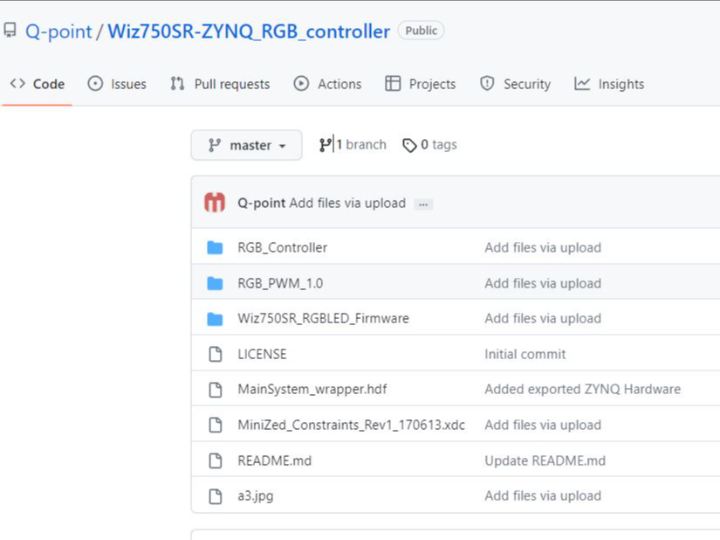

The GitHub link provided leads to a project titled "Wiz750SR-ZYNQ_RGB_controller". This project likely involves interfacing a Wiznet Wiz750SR module with a Zynq FPGA (Field-Programmable Gate Array) for controlling RGB (Red, Green, Blue) lighting.

The Wiz750SR is a serial-to-Ethernet module designed for IoT (Internet of Things) applications. It enables devices with serial interfaces to connect to a network using the Ethernet protocol.

The Zynq FPGA is a product from Xilinx that combines a dual-core ARM Cortex-A9 processor with programmable logic, allowing for hardware acceleration and customization of functions.

In this specific project, it seems the Zynq FPGA is used to interface with the Wiz750SR module for controlling RGB lighting. This could involve tasks such as data communication, processing of control commands, and driving the RGB LEDs.

For more detailed information, you should refer to the project's README or documentation files within the GitHub repository. It may contain specifics about the project's goals, hardware connections, software code, and any additional components or dependencies required to run the project.
