RiskZero FPGA Workstation Single Board Computer

The aim of this project is to provide an FPGA implementation of the Phasor Estimation algorithm in this paper: https://ieeexplore.ieee.org/d

irina

Published February 01, 2023 · © Apache License 2.0 (Apache-2.0)

Original author: riskfiveOriginal source (new tab)

RiskZero FPGA Workstation Single Board Computer

Project description

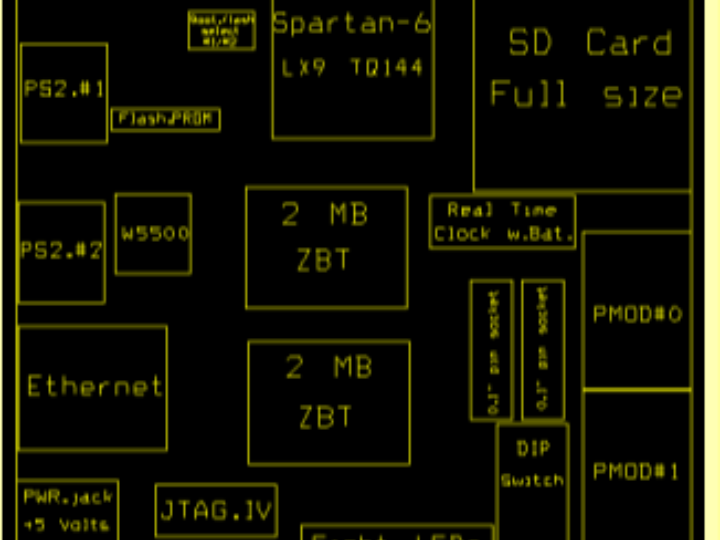

https://riskfive.com/RiskProject_overview.htm One Spartan-6 FPGA XC6SLX9-TQ144 serving as a reconfigurable CPU. 4 megabytes of Zero Bus Turnaround (ZBT) memory. Two SD cards (one micro and one full size). HDMI video output. Two FPGA boot flash chips whose roles can be swapped with a switch. PS2 connectors for the keyboard and mouse. Three PMOD connectors for SPI-based data acquisition. See Note 1. USB-to-UART and USB-to-JTAG converter chip FT2232H. SPI-to-Ethernet converter W5500 with the on-chip TCP/IP stack. A socket for the 2.4 GHz Nordic Semi NRF24L01 wireless module. A socket for the…
