Lcd-Meter
The project is using an Arduino Uno board, sensors for temperature, humidity, and light, and an Ethernet shield for internet connectivity.
6
Project description
The project is about creating a weather station using an Arduino Uno board and an Ethernet shield.
The weather station uses various sensors to measure temperature, humidity, barometric pressure, and light level.

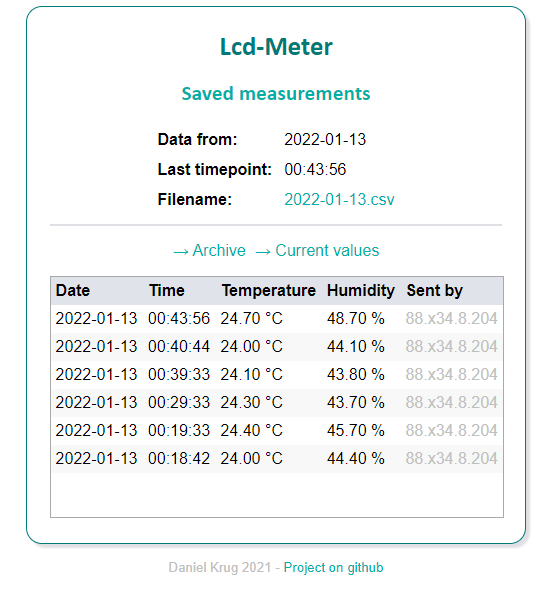

The collected data is transmitted to a remote server over the internet using the Ethernet shield.
Parts
- Arduino Uno board
- Ethernet shield (W5100)
- DHT22 temperature and humidity sensor
- BMP180 barometric pressure sensor
- BH1750 light level sensor

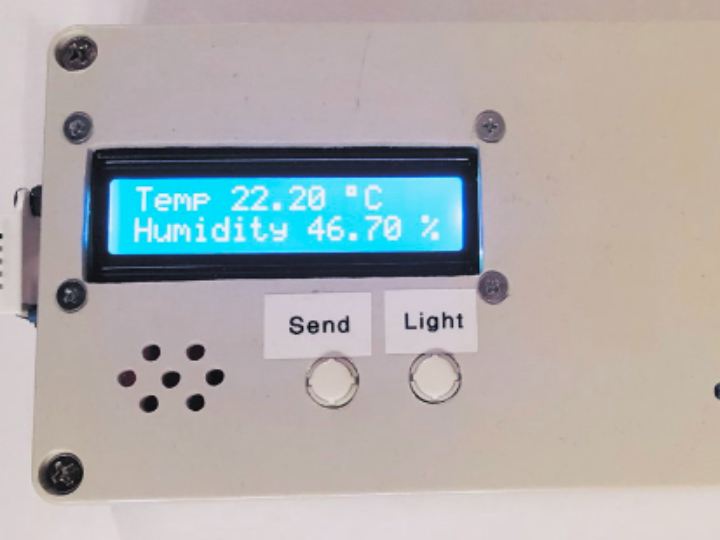

- 16x2 LCD display
- Breadboard and jumper wires
- 5V power supply
- Ethernet cable

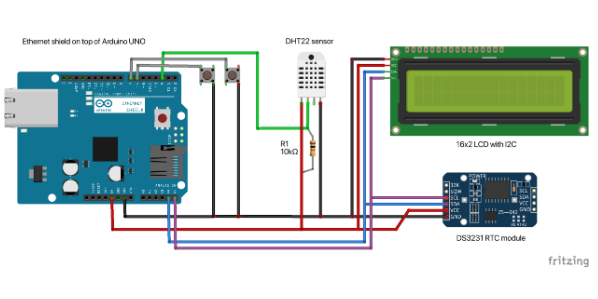

The project page provides detailed instructions on how to build the weather station, including hardware connections, sensor calibration, and server-side programming.
The website includes sample code that can be used to program the Arduino Uno board.
A video tutorial is available that demonstrates the project's construction and operation.
The project is a valuable resource for makers and DIY enthusiasts interested in creating a remote weather station or other monitoring/sensing applications using an Arduino Uno board and an Ethernet shield.
