W5500 Network stability Issue
Ethernet Chips
No replies yet. Be the first to reply.
Join the discussion.
Ethernet Chips
No replies yet. Be the first to reply.
Join the discussion.
Share projects and connect with makers.
Joined before the site update? first.
New to WIZnet Makers?
We sent a verification link to your address. Open it to activate your account, then log in.
Accounts from this email provider are reviewed by an administrator after verification. Approval usually takes one business day.
Already have an account?
Enter your email address. If it belongs to an account, we'll send a link to set a new password. Members who joined before the site update use this to set their password.
If an account uses that address, we sent a link to set a new password. The link works once and expires in 30 minutes.
Know your password?
Need an account?
RE: W5500 Network stability Issue
by Priya Garg ·
Would be great if anyone can guide.
RE: W5500 Network stability Issue
by Alan WIZnet ·

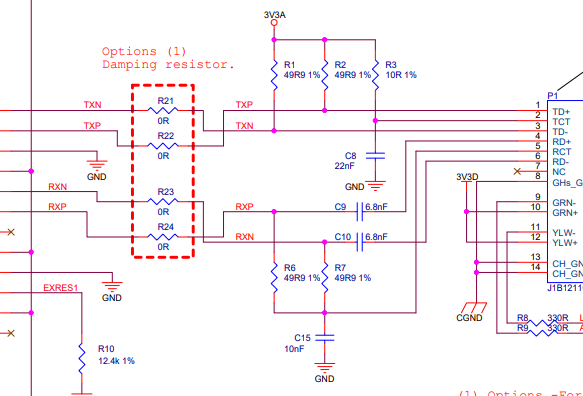

Hello, I reviewed your circuit diagram. There’s quite a lot of trouble. In particular, please review the MDI circuit part again. Reference circuit link.
RE: RE: W5500 Network stability Issue
by Priya Garg ·
Hi @Alan ,
Thank you for reviewing the circuit. I have referred the official reference circuit while designing the schematic. And I see that in your circuit, Differential RX is pulled down and in mine, it is pulled up. Other circuit remains same.
Can you please let me know if this change really affects the stability?
RE: W5500 Network stability Issue
by Alan WIZnet ·
Please review the reference circuit carefully… It’s very different…
RE: W5500 Network stability Issue
by Alan WIZnet ·
Aren’t you going to distinguish GND?
Resistance values are also important. The resistance of the TC should not be high.
