W5500 PHY LINK (0 bit of PHYCFGR) vs pin 25 LINKLED

Question

Can anyone tell me the difference or similarity between the status of the W5500 pin 25 LINKLED (active low for established link) and the LINK bit 0 of the PHYCFGR register? According to my understanding it should be the same meaning, if the Physical link is active then both pin 25 needs to go active low and bit 0 in the PHYCFGR register should be ‘1’. I use the ETH WIZ click module from Mikro Elektronik. When I plug the cable in I do get the LINKLED on, pin 25 active low but, PHYCFGR bit 0 stay ‘0’. The schematic looks correct. The SPI works correct, can read and write registers correctly. Read version number as 4. The PHYCFGR register reads b10111010 and if I change that to b11111000 then it stays that way. Any suggestions?

Eugeny · Answer

Sounds strange. Try performing software reset to the chip (using MR register) and also try resetting PHY (using PHYCFGR[7]) and see if it will change anything.

CPC · Answer

I did a software reset without any change. I then reset bit 7 of the PHYCFGR register with 0x38 (56) and leave it at that to see what happens. The PHYCFGR did not change, bit 7 did not set, neither any other. The leds on the connecter were also off and pin 25 high. Then I change the code to add a delay of 500ms after this and then write 0xB8 to the PHYCFGR register. Now the Leds came back on, pin 25 low and the value of the PHYCFGR reads 0xBA (186) again? Is there perhaps some registers that needs to be setup before the PHYCFGR register?

CPC · Answer

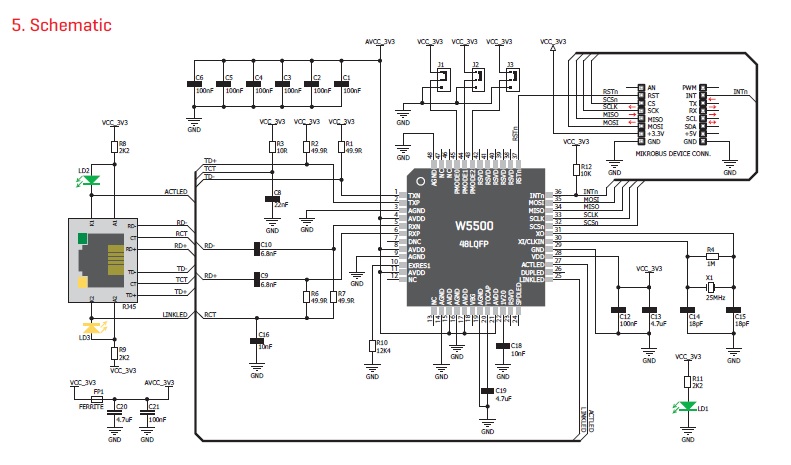

This is a brand new module. Here is the circuit diagram of the ETH Wiz click. ETH WIZ click circuit791×465 82 KB

CPC · Answer

Found the problem! As part of my wiznet chip initialization I start by doing a “hardware reset” by writing a ‘0’ to pin 37 (RSTn), wait for 5ms and raise it (writing a ‘1’), wait for 50ms and then continue with the setup. What happens during a reset to cuase such “mulfunction” to the physical section?

CPC · Answer

OK, the w5500 has a reset pin, RSTn (pin 37), which I use to reset the device after powerup just to make sure I have a clean boot… Doing this in stead of just reading the version number register to make sure the chip is alive and SPI works, happens to be an issue. So, if I do not reset the w5500 this way but, reads the version number register immediately after power up and setup the rest of the registers (only those that needs to be set) if the version value is 0x04, then the PHYCFGR register reads correctly. However, if I unplug the cable, the value in the PHYCFGR does not change! If I boot the w5500 without the cable pluged in and plug in the cable afterwards, it also does not change to read an uplink! It only reads correctly when it boots with the cable pluged in? How come this be?

CPC · Answer

One step forward. With the delays the PHYCFGR register reads correctly after a boot but, never updates there after. If I unplug or plug the cable in makes no difference, the value that it boots with is what it keeps? With the cable pluged in before power up gives 0xBF (191) and with the cable unpluged 0xBA (186). With the reset sequence on the external pin 37 removed makes no difference. I also add a 500ms delay after the software reset, that also makes no difference. Any other sugestions?

CPC · Answer

Problem solved! The powersupply is capable of delivering 800mA with 3.3V but, the output capacitor was to small. Added some direct wiring with a 10uF cap close to the wiz module and that solved the problem. Now the config register changes according to the cable being pluged in or not. Thank you very much.
