Should the W5500 EXRES1 pin be connected to GND or AGND?
Ethernet Chips
No replies yet. Be the first to reply.
Join the discussion.
Ethernet Chips
No replies yet. Be the first to reply.
Join the discussion.
Share projects and connect with makers.
Joined before the site update? first.
New to WIZnet Makers?
We sent a verification link to your address. Open it to activate your account, then log in.
Accounts from this email provider are reviewed by an administrator after verification. Approval usually takes one business day.
Already have an account?
Enter your email address. If it belongs to an account, we'll send a link to set a new password. Members who joined before the site update use this to set their password.
If an account uses that address, we sent a link to set a new password. The link works once and expires in 30 minutes.
Know your password?
Need an account?
RE: Should the W5500 EXRES1 pin be connected to GND or AGND?
by tingox ·
This question is old now, but just for completeness: the W5500 datasheet, section 1.1 Pin Descriptions, pin 10 says that it is for biasing of (internal) analog circuits, so it makes sense that it should be connected to analog ground.
In many reference schematics analog ground and digital ground are the same.
RE: Should the W5500 EXRES1 pin be connected to GND or AGND?
by r-ssh ·
Tingox, I agree with you, but the example designs do not.
In the WIZ850io schematic, EXRES1 is connected to digital ground through a 12.4k resistor, even though all of the AGND pins are connected to analog ground (see image below).

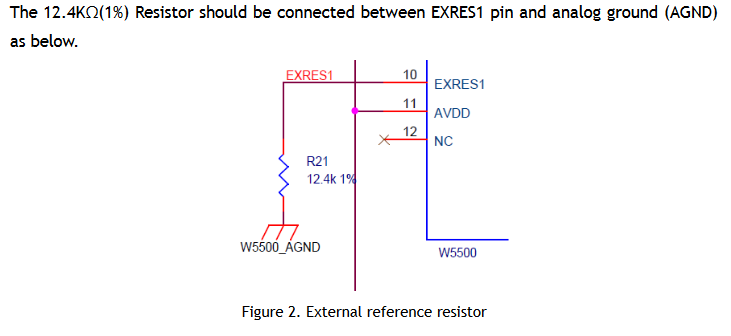

This circuit has both digital and analog ground, but chooses to connect EXRES1 to digital ground. This seems deliberate, but it contradicts what the datasheet says (see image below).
Does anybody know why? What is the correct way to connect this pin?
RE: RE: Should the W5500 EXRES1 pin be connected to GND or AGND?
by Eugeny ·
There’re GND and AGND only if you place ferrite bead between them. Otherwise both are GND. I recall there were discussions if putting ferrite bead onto both supply and ground wires is feasible and/or has side effects. And the recommendation was NOT to put ferrite bead onto the GND, only onto supply rail.
