W5500 DHCP client doesn't accept DHCP Offer

Question

Hi all, I have been struggeling with this all day and I can not figure it out what the problem is. I made a application with a STM32L431CC and a W5500. Using the ioLibrary Drivers I’m trying to assign a IP address to my device. From a cold boot of the system the following (simplefied version) will happen: w5500_init(); // Initialize the w5500 with the SPI settings and a MAC address. w5500_version(); // Check the version (check if the SPI is communicating correctly) w5500_init_dhcp(); // Init the DHCP and set the callbacks (Socket is 0 and buffersize is 2048 byte) while(1) { DHCP_run() } The system will boot up and produce the following debug output: w5500_init() called! Registering W5500 callbacks... Calling wizchip_init()... Version is: OK DHCP enabled Init DHCP Registering DHCP callbacks... > Send DHCP_DISCOVER <> state : STATE_DHCP_DISCOVER > Send DHCP_DISCOVER ... When watching the trafic in Wireshark I see the following: src dst Protocol Size Comment 0.0.0.0 255.255.255.255 DHCP 590 DHCP Discover - Transaction ID 0x12345679 192.168.2.1 255.255.255.255 DHCP 342 DHCP Offer - Transaction ID 0x12345679 … 0.0.0.0 255.255.255.255 DHCP 590 DHCP Discover - Transaction ID 0x12345679 192.168.2.1 255.255.255.255 DHCP 342 DHCP Offer - Transaction ID 0x12345679 And this in a continous loop. Strange thing is; when I’m resetting the microcontroller (and thus re-initializing the W5500 without power loss) It will receive a IP no problem. But resetting the microcontroller everytime from a cold boot is a no go. Does anyone have any idea what the problem could be? Thank you in advance!

becky · Answer

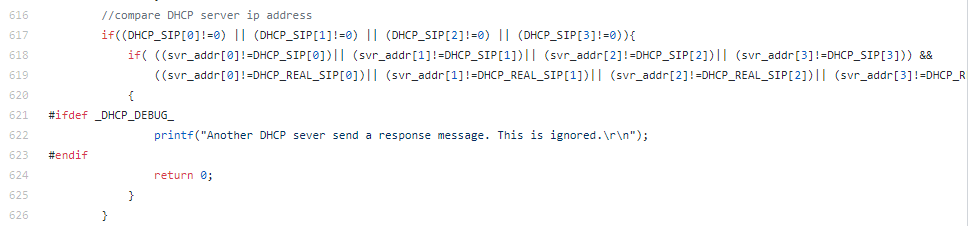

I am wondering if you are using the most recent ioLibrary. IoLibrary has been updated by finding a bug similar to yours. GitHub GitHub - Wiznet/ioLibrary_Driver: ioLibrary_Driver can be used for the... ioLibrary_Driver can be used for the application design of WIZnet TCP/IP chips as W5500, W5300, W5200, W5100 W5100S. - GitHub - Wiznet/ioLibrary_Driver: ioLibrary_Driver can be used for the applica... The parseDHCPMSG() function should contain the following. image971×226 8.46 KB
