RE: W5500 Ethernet module with dsPIC30f
by Eric-nguyen ·
Dear Vpan
Thank you for replying to me. I’m a new one in SPI protocol and when I’ve tried to make a new program, the conflict between w5500’s library and microchip’s library have occurred. With your advices, I think this problem is about the address, sorry for my slow on the uptake but can you explain more detail about it for me. I don’t know where I have to begin at…

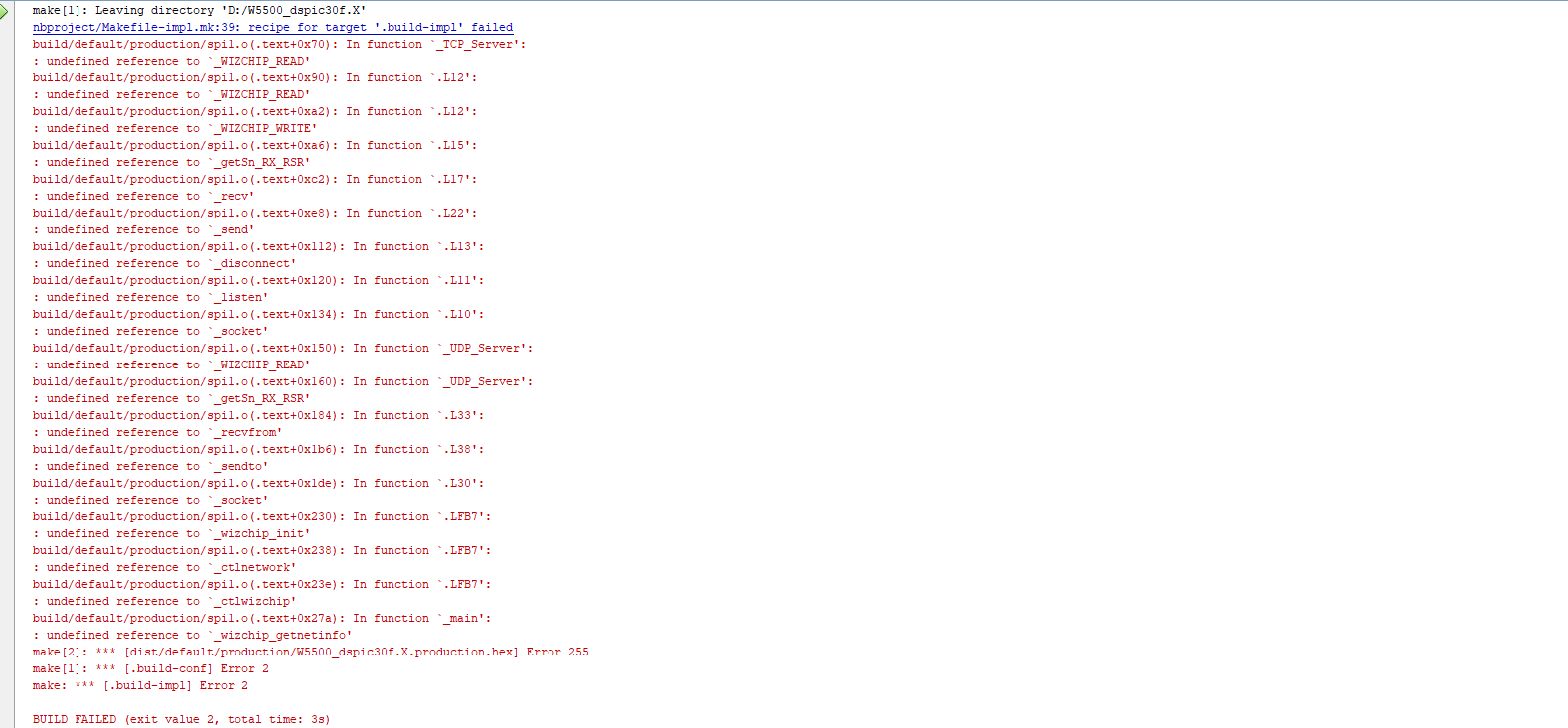

This is my program and my build failed
// Socket & Port number definition
#define SOCK_ID_TCP 0
#define SOCK_ID_UDP 1
#define PORT_TCP 5000
#define PORT_UDP 10001
#define DATA_BUF_SIZE 1024
uint8_t gDATABUF[DATA_BUF_SIZE];
#define Wizchip_CS LATBbits.LATB2
#define Wizchip_CS_Direction TRISBbits.TRISB2
#define Wizchip_Rst LATBbits.LATB5
#define Wizchip_Rst_Direction TRISBbits.TRISB5
///////////////////////////////////////////////////////////////////////////////
volatile wiz_NetInfo gWIZNETINFO =
{
{0x00, 0x14, 0xA3, 0x72, 0x17, 0x3f}, // Source Mac Address
{192, 168, 0, 122}, // Source IP Address
{255, 255, 254, 0}, // Subnet Mask
{192, 168, 0, 1}, // Gateway IP Address
{192, 168, 14, 99}, // DNS server IP Address
NETINFO_STATIC
};
volatile wiz_PhyConf phyConf =
{
PHY_CONFBY_HW, // PHY_CONFBY_SW
PHY_MODE_MANUAL, // PHY_MODE_AUTONEGO
PHY_SPEED_10, // PHY_SPEED_100
PHY_DUPLEX_FULL, // PHY_DUPLEX_HALF
};
wiz_NetInfo pnetinfo;
////////////////////////////////////////////////////////////////////////////////
void InitSPI (void);
void CB_ChipSelect(void);
void CB_ChipDeselect(void);
void SPIWrite(unsigned int data);
unsigned int SPIRead();
void TCP_Server(void);
void UDP_Server(void);
static void W5500_Init(void);
void Delay_x_mS( int N_mS );
////////////////////////////////////////////////////////////////////////////////
void InitSPI (void){
unsigned int SPICONValue;
unsigned int SPISTATValue;
TRISFbits.TRISF6 =0; //Output RF6/SCK1
TRISFbits.TRISF2 =1; //Input RF2/SDI1
TRISFbits.TRISF3 =0; //Output RF3/SDO1
ADPCFGbits.PCFG2 =1; //Pin RB2 analog in
LATBbits.LATB2 = 1;
TRISBbits.TRISB2 = 0; // Output RB2 (CS RB2)
SPICONValue = FRAME_ENABLE_OFF& //FRMEN: 0= Framed SPI support disabled
FRAME_SYNC_OUTPUT& //SPIIFSD: 0= Frame sync pulse output(master)
ENABLE_SDO_PIN& //DISSDO: 0= SDOx pin is controlled by the module
SPI_MODE16_OFF& //MODE16: 0= Communication is byte-wide (8 bits)
SPI_SMP_OFF& //SMP: 0= Input data sample at middle of data output time
SPI_CKE_OFF& //CKE: 0= Serial output data changes on transition from Idle clk to active clk state
SLAVE_ENABLE_OFF& //SSEN: 0= SS pin not use by module. Pin controlled by port function
CLK_POL_ACTIVE_HIGH& //CKP: 1= Idle state for clock is high level. Active state is low level
MASTER_ENABLE_ON& //MSTEN: 1= Master mode
SEC_PRESCAL_3_1& //SPRE<2:0>: Secondary Prescale 3:1
PRI_PRESCAL_1_1; //PPRE<1:0>: Primary Presacle 1:1
SPISTATValue = SPI_ENABLE& //SPIEN: 1= Enables module and configures SCKx, SDOx, SDIx and SSx as serial port pin
SPI_IDLE_CON& //SPISIDL: 0= Continue module operation in Idle mode
SPI_RX_OVFLOW_CLR; //SPIROV: 0= No overflow has occurred. Clear receive overflow bit
}
// brief Call back function for WIZCHIP select.
void CB_ChipSelect(void)
{
Wizchip_CS = 0;
}
// brief Call back function for WIZCHIP deselect.
void CB_ChipDeselect(void)
{
Wizchip_CS = 1;
}
void SPIWrite(unsigned int data){
while(SPI1STATbits.SPITBF);
WriteSPI1(data);
}
// brief Callback function to read byte using SPI.
unsigned int SPIRead(){
uint8_t tmp = 0;
WriteSPI1(0);
while(!DataRdySPI1());
tmp = ReadSPI1();
return tmp;
}
// brief Handle TCP socket state.
void TCP_Server(void)
{
int32_t ret;
uint16_t size = 0, sentsize = 0;
}
// brief Handle UDP socket state.
void UDP_Server(void)
{
int32_t ret;
uint16_t size, sentsize;
uint8_t destip[4];
uint16_t destport;
}
// brief Initialize modules
static void W5500_Init(void)
{
// Set Tx and Rx buffer size to 2KB
uint8_t buffsize[8] = { 2, 2, 2, 2, 2, 2, 2, 2 };
// SPI1_Init_Advanced(_SPI_MASTER_OSC_DIV4, _SPI_DATA_SAMPLE_MIDDLE, _SPI_CLK_IDLE_LOW, _SPI_LOW_2_HIGH);
}
void Delay_x_mS( int N_mS )
{
int Loop_mS,Del_1mS;
}
////////////////////////////////////////////////////////////////////////////////
int main(void)
{
ADPCFG = 0; // Set PORT B as digital
InitSPI();
W5500_Init();
wizchip_getnetinfo(&pnetinfo);
}
