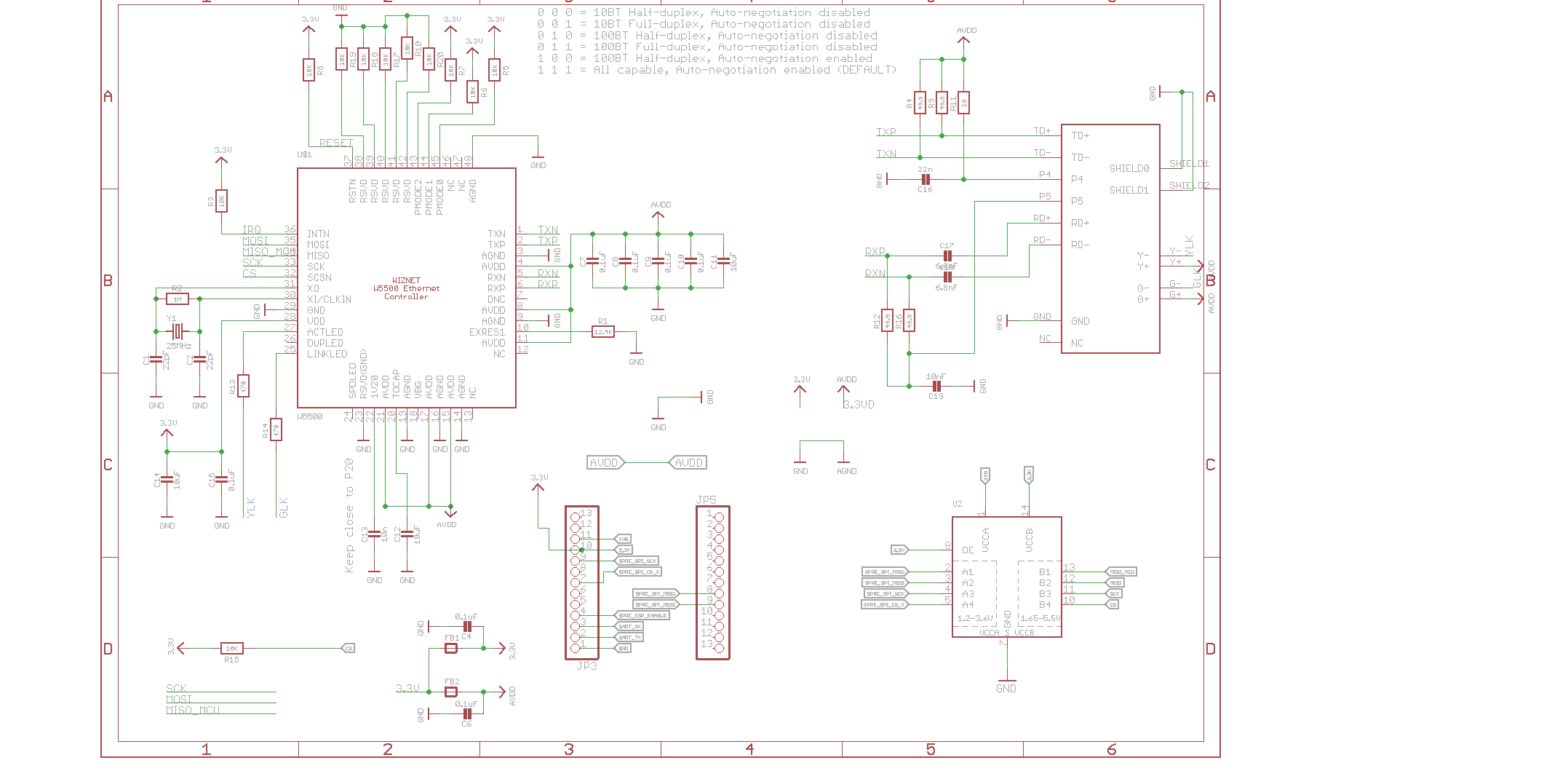

Cant make my w5500 board working.
Ethernet Chips
No replies yet. Be the first to reply.
Join the discussion.
Ethernet Chips
No replies yet. Be the first to reply.
Join the discussion.
Share projects and connect with makers.
Joined before the site update? first.
New to WIZnet Makers?
We sent a verification link to your address. Open it to activate your account, then log in.
Accounts from this email provider are reviewed by an administrator after verification. Approval usually takes one business day.
Already have an account?
Enter your email address. If it belongs to an account, we'll send a link to set a new password. Members who joined before the site update use this to set their password.
If an account uses that address, we sent a link to set a new password. The link works once and expires in 30 minutes.
Know your password?
Need an account?
RE: Cant make my w5500 board working.
by scott WIZnet ·
Hi.
Did you use RB1-125BAG1A?
Please check the data sheet of RB1-125BAG1A again.
RD1-125BAG1A(XA).pdf (185.3 KB)
There seems to be no other circuit problems.
Did you design the PCB with the PCB Design Guide?
http://wizwiki.net/wiki/doku.php?id=design_guide:hardware:start
Thank you
Soctt
RE: Cant make my w5500 board working.
by Piotr Jankowski ·
Thank you very much for your answer.
Yes i did. I did design another version as well using the HR911105
A bit more simple. And I think this time I did not make any mistakes.
Peter
