RE: WIZ750SR-TTL vs WIZ107SR-TTL
by rena ·
Hi, @kslam1980.

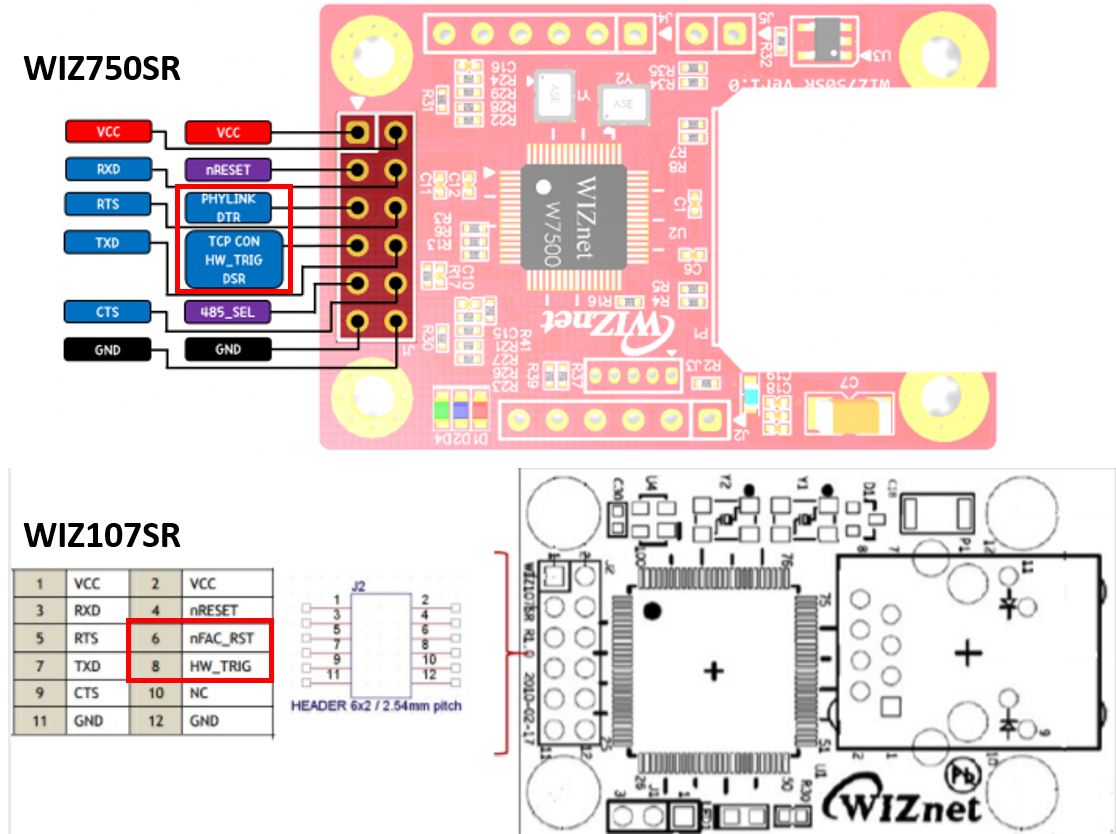

WIZ750SR is a replacement for WIZ107SR and is compatible.
Some of the differences are:
WIZ750SR is based on Cortex-M0 and WIZ107SR is based on 8051 MCU.
Operation Temperature (℃)
WIZ750SR: Commercial (0~70)
WIZ107SR: Industrial (-40~85) for H/W revision v1.3 or later.
WIZ750SR has expansion GPIO
For more details, please refer to the WIZWiki and WIZnet official website.
