RE: Link연결
by sjc ·
회로도 첨부합니다.
w5100.pdf (99 KB)
RE: Link연결
by jeongsk ·
안녕하세요 위즈네트 입니다.
첨부한 회로를 확인 했습니다.

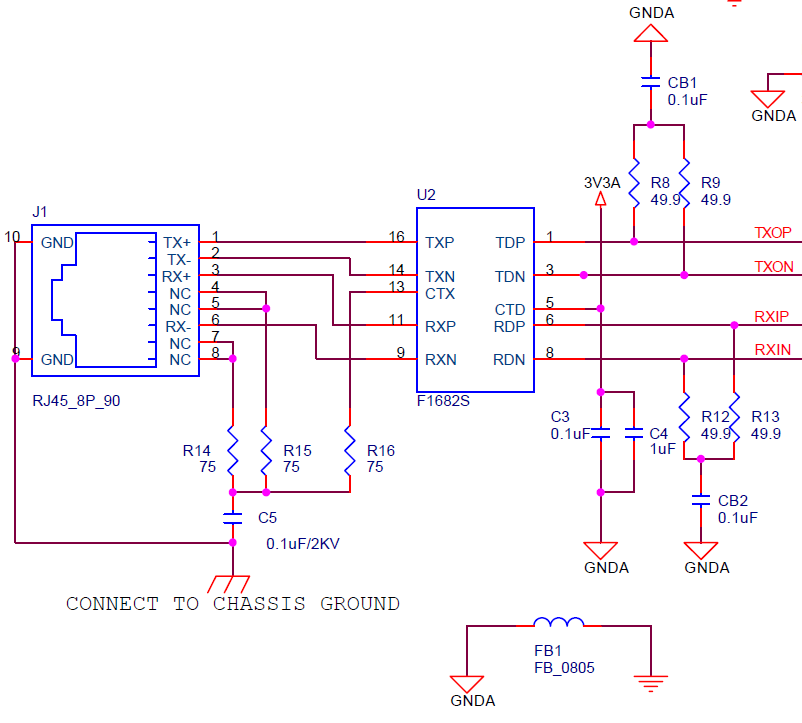

트래스포머의 회로를 첨부된 사진과 같이 설계하시는 것을 추천 드립니다.
감사합니다.
