Interrupts don't fire if reading status register

Question

If I repeatedly read a socket’s status register in a loop, it seems interrupts don’t fire. /* psuedo code: interrupts don't fire */ while(1) { uint8_t status = socket_get_status(); switch(status) { /* ... */ } } If I don’t read the status, the interrupts fire as expected: /* psuedo code: interrupts fire as expected */ while(1) { /* uint8_t status = socket_get_status(); */ switch(status) { /* ... */ } } I’m using the SPI interface with an STM32F4 MCU. Is anyone aware of a problem like this? 부탁 드림니다. Mike

Mike · Answer

If I add a 20us delay in the loop, it works fine. [code]/* psuedo code: this works / while(1) { uint8_t status = socket_get_status(); switch(status) { / … */ } delay_us(20); } [/code] Anyone have an idea why?

Mike · Answer

[quote]Check the mask value of IMR regsiter. When the mask value set as ‘1’ ans the coresponding bit also set as ‘1’ , Interrupt oucurrs. Others, no interrupt oucurrs.[/quote] Since the interrupts do occur when not reading the status register, or after adding a delay to the loop, the mask is set correctly. If it wasn’t I wouldn’t receive interrupts under any condition. And, check the hardwire connection to MCU’s intterupt input pin with W5100’s /INT pin. Again, since I am getting interrupts under certain conditions, it is obvious that the hardware is wired correctly. And, Check your MCU’s interrupt control as sensitivity and polarity. And again, since I am getting interrupts under certain conditions, it is obvious this is set correctly. The only difference is a 20us delay added in the loop, and it makes all the difference. Is the W5100 unable to pull the interrupt pin if it’s register are being read?

Mike · Answer

[quote]I wonder how to process Sn_IR register and what is your ISR routine. Sn_IR represents the interrupt of socket such as CONNECT,DISCON,RECV,SENDOK and TIMEOUT. if Sn_IR is not zero and Sn_IR mask bit is set, n bit of IR become set and Interrupt pin hold low until IR is not zero. Although IR is not zero, another interrupt can be occurred without changing the interrupt pin. So, Once interrupt is detected, you should process all IR bit and clear all Sn_IR.[/quote] This is exactly what I’m doing. I modeled it after the examples and the information in the datasheet. I ask that you please take the time to test yourself. Create a simple loop to repeatedly read the status register, and see if it prevents the interrupts from firing. Knowing if you experience the same problem will be very helpful. Thanks.

hjjeon0608 · Answer

Hi, I am trying to test your condition. After test I will post ASAP. Best regards.

hjjeon0608 · Answer

Hi, I tested done. But interrupt is always fine. So, I think reading status register has nothing to do with interrupt. Let’s try to find problem. Best regards.

Mike · Answer

Thank you for taking the time to test. Were you using the SPI interface? I suspect that is critical to reproducing the problem.

hjjeon0608 · Answer

Hi, I tested interrupt in SPI interface. And post your schematics and I/O function code. Then we will check and reply. Best regards.

Mike · Answer

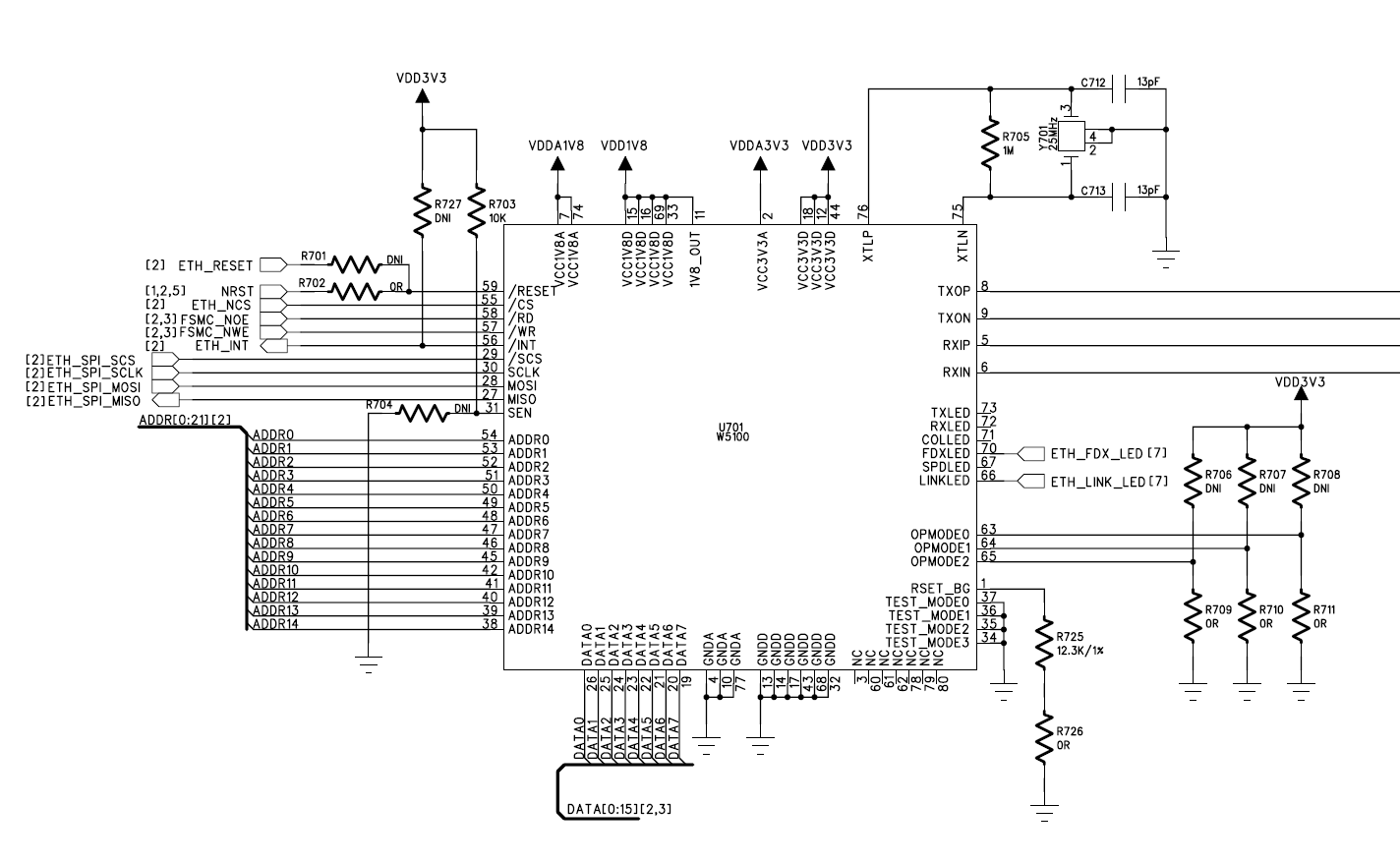

Let’s start with the schematic. Here it is. Do you see any potential problems? 1424×877 97.9 KB

peter · Answer

I made a few comments about the schematic. To use system bus interface mode, pull down the SEN pin. You can’t use both MCU system bus I/F mode and SPI I/F mode simultaneously. Thanks.

Mike · Answer

[quote]1. To use system bus interface mode, pull down the SEN pin. 2. You can’t use both MCU system bus I/F mode and SPI I/F mode simultaneously.[/quote] Yes, we are aware of this. The “DNI” (Do Not Insert) is only there in case we change our minds, so we don’t have to refabricate a PCB.
