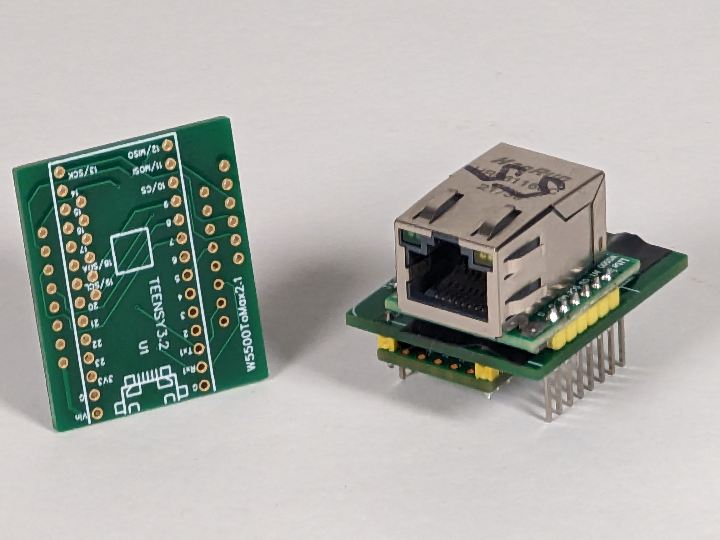

W5500ToMax2 Ethernet interface PCB
This handy little PCB that Howard Dutton designed allows you to put a hard wired ethernet connector in the same foot print as the ESP8266 commonly used for WiFi
0
Project description
📌 OnStep이 정확히 뭐야? OnStep은 (사이트 : https://onstep.groups.io/g/main/wiki/ ) ✔️ 컴퓨터화된 망원경 제어(Goto) 시스템 ✔️ *텔레스코프 마운트(평형식/Alt-Az)*을 전자적으로 제어해서 👉 지정한 천체 방향으로 자동으로 움직이고 👉 움직이는 동안 별/행성을 추적할 수 있게 해 주는 시스템이야 1. 프로젝트 한눈에 보기 항목 내용 프로젝트명(제안) “OnStep Ethernet Add-on with WIZnet W5500 (W5500ToMax2)” 목표 Wi-Fi(ESP8266) 대신 유선 Ethernet을 사용해 OnStep 망원경 마운트 컨트롤러의 네트워크 안정성·속도를 개선 주요 HW WIZnet W5500 이더넷 모듈, Teensy 4.0 MCU, 맞춤 PCB (W5500ToMax2) 주요 SW OnStep Smart Web Server(SWS) 펌웨어, Teensyduino Ethernet 라이브러리 라이선스 GPL v3 (OSHWLab 게시 정보) OSHWLab 2. WIZnet W5500 활용 포인트 하드웨어 TCP/IP 오프로드로 MCU 부하↓, 실시간 제어 신뢰도↑ 32 KB…
