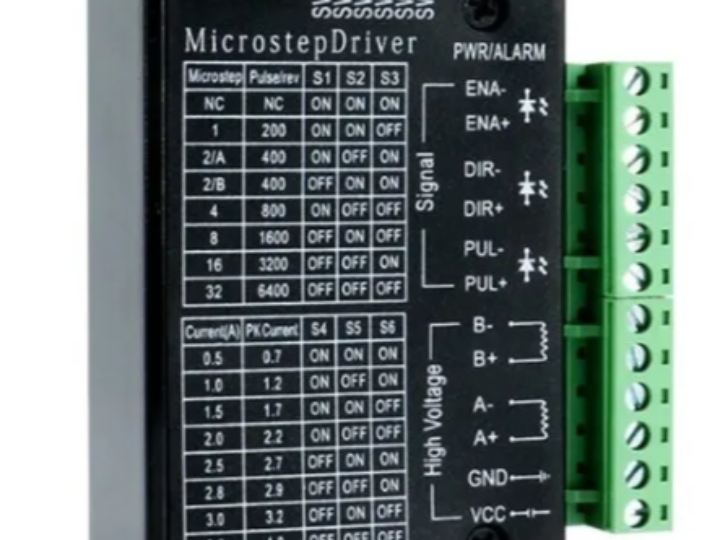

Stepper Motor Driver - Tb6600
.
3
Project description
Microcontroller : Wiznet W5500 Operating voltage : 9-40 Minimum recommended input voltage - Maximum recommended input voltage : 24V - 36V Minimum input voltage limit - Maximum input voltage limit : 24V - 36V Description Product features: DC 9-42V power supply, 12-30V power supply is best Control signal input voltage is universal 3.3-24V (no string resistor required) Accuracy of subdivision 1-32 subdivision optional Maximum output current 4.0A Bipolar h-bridge constant current drive Input signal high-speed optocoupler isolation Built-in temperature protection and overcurrent protection…
