Electrical characteristics measuring device for security sys

development of a device that is capable to measure and store the electrical characteristics of security systems

annjaison

Published August 30, 2022

Original author: A. GHEORGHEOriginal source (new tab)

Electrical characteristics measuring device for security sys

Project description

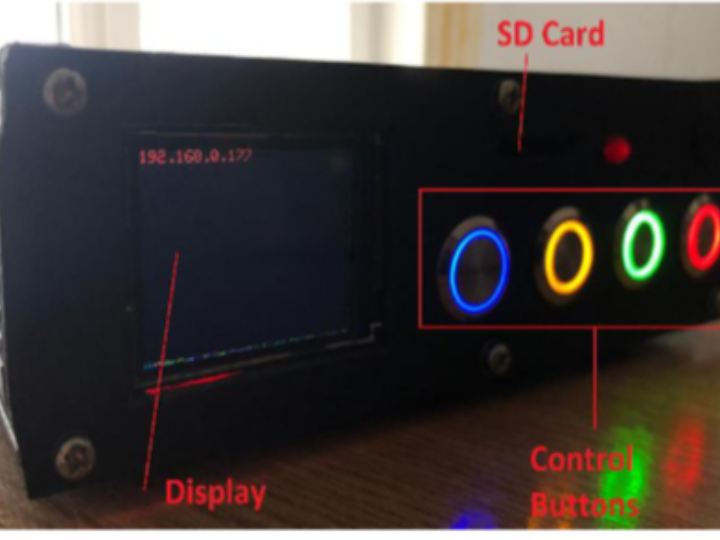

The study aims for the development of a device that is capable to measure and store the electrical characteristics of security systems. The development of the device is done by using the Arduino Mega 2650 board, Arduino Ethernet shield 2, SD card module, 1.8” TFT ISP LCD, keyboard module, ASC712 current sensors, A.C voltage sensors and D.C voltage sensors. The measured data from the current and voltage sensors is stored on the SD card module and sent to the user via the ethernet connection. The data obtained from the device is useful to keep track of the power consumption of any security…
