Smart Water Tank Control System
Smart Water Tank Control System
0
Components
Hardware components
Arduino - Arduino Mega 2560
x 1
Arduino Logic Board
Probes
x 1
Sensors
RJ45
x 3
Cables
Breadboard
x 1
Jumper Cables
x 1
Relay
x 1
Logic Board
WIZnet Ethernet Shield
x 1
W6100
Potentiometer
x 1
LCD
x 1
Mini Submersible Pump
x 1
water pump
Arduino - Arduino IDE
x 1
IDE
Project description
- Make all the connections as in the connection diagram
- Load the basic program first to ensure your circuit is proper then upload the actual code final and then open the IP Address in a browser to use the WIZnet W6100 Ethernet shield to control Online! CIRCUIT DIAGRAM
- https://youtu.be/Yg6Cxs-xXv4
Documents
-
Final Code
Arduino (.ino) file
-

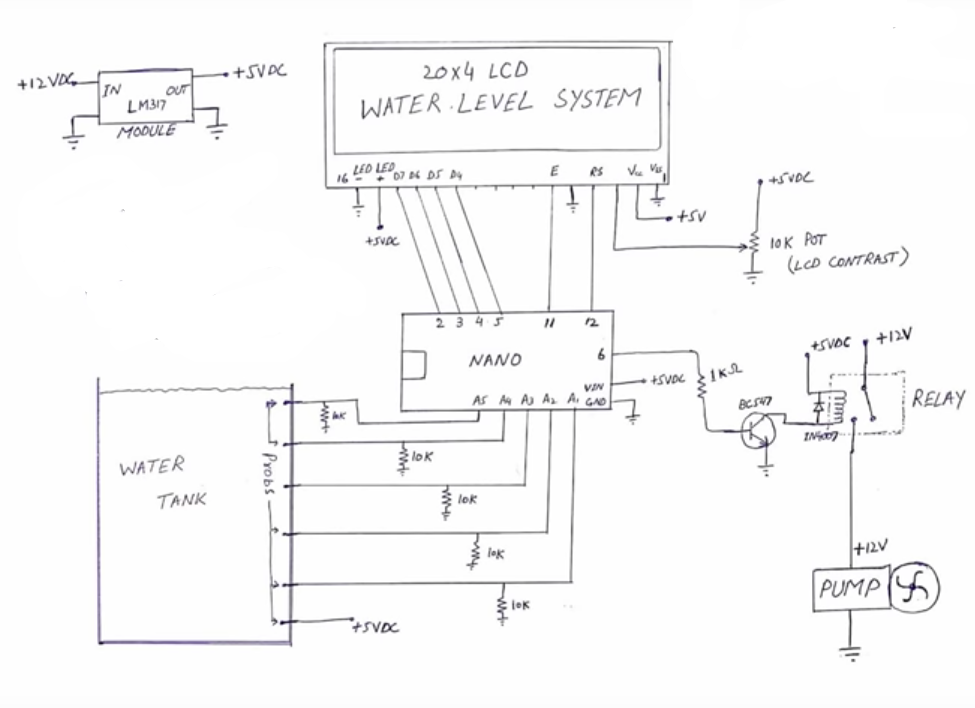

Schematic Diagram
Image File
-

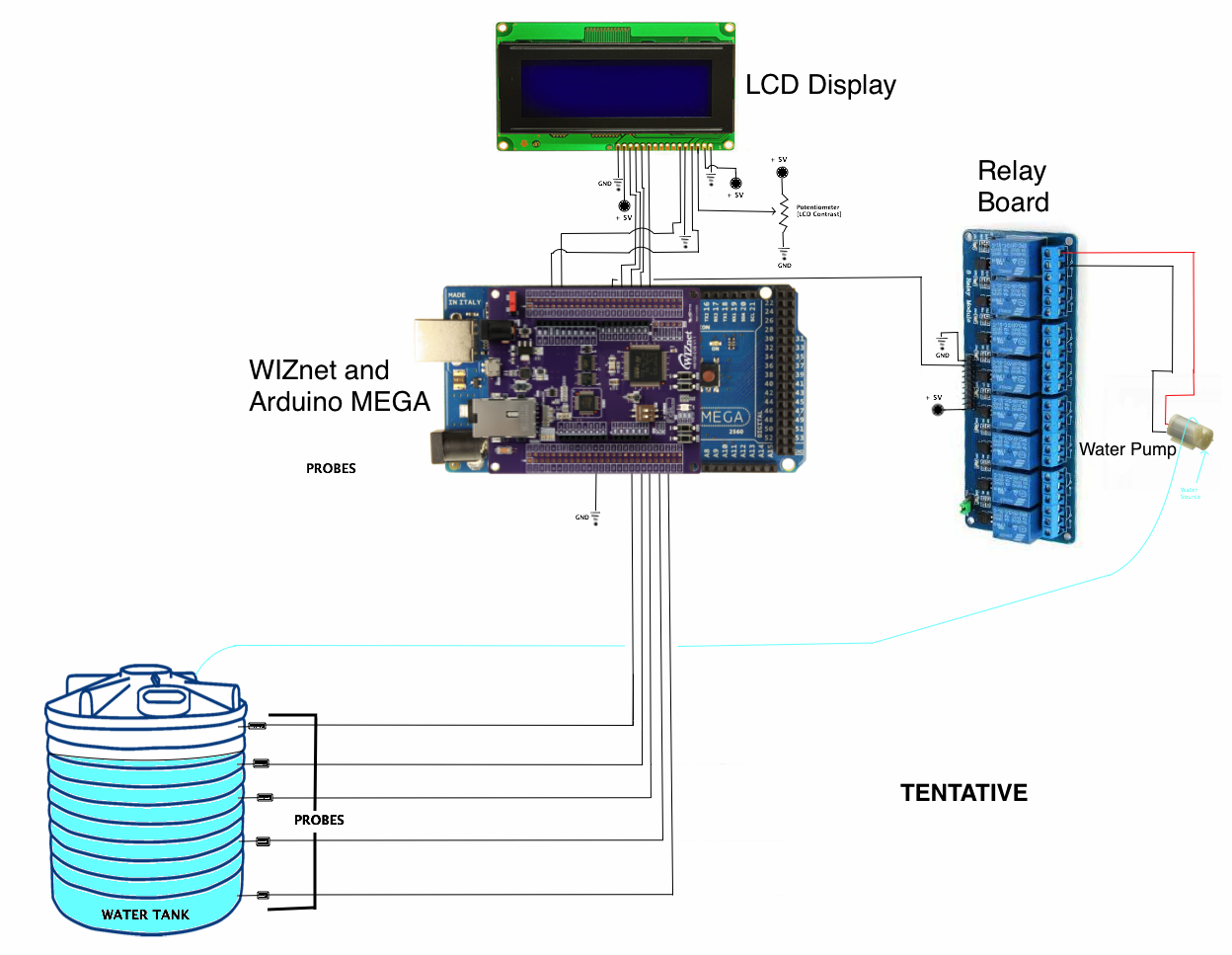

connection Diagram
Image File
-
Video
youtube
-
Github
Github
-
instructables.com
instructables.com
-
hackster.io
hackster.io
-
Connection Diagram
-

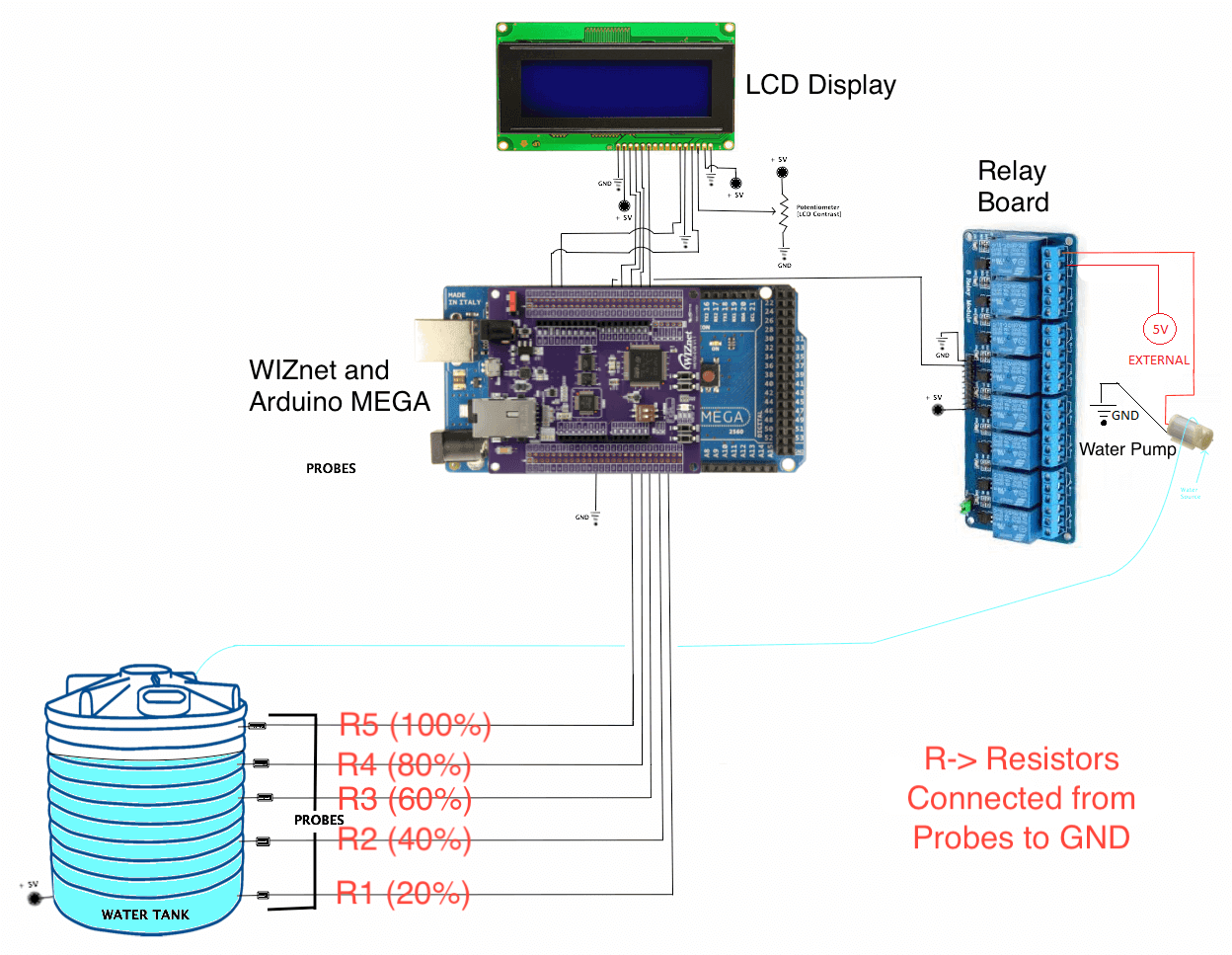

Schematic Diagram
