WisIOE W5500IO-P
The W5500IO module is the minimal Ethernet module with W5500 chip as the core.
1
Components
Hardware components
WIZnet - W5500
x 1
Project description
INTRODUCTION

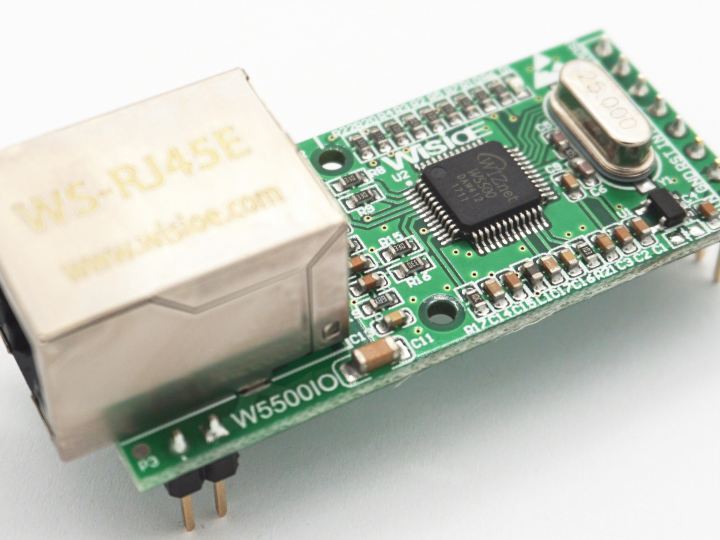

The W5500IO module is the minimal Ethernet module with W5500 chip as the core. The module integrates Ethernet RJ-45 interface, network transformer, LDO, etc. The main application is to facilitate customers for rapid evaluate production of W5500 chips and products.
FEATURES
W5500 is one of WIZnet's high-performance Ethernet interface chip series, which integrates the full hardware TCP/IP protocol, stack + MAC + PHY. The full hardware protocol stack technology uses hardware ASIC to implement complex TCP/IP protocol stacks. Its application has obvious advantages such as simple and fast, high reliability and good security.
TECHNICAL DETAILS
Full hardware TCP/IP protocol stack – Supports TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE protocols High-speed SPI host interface – SPI mode: 0, 3 – SPI clock up to 80MHz Supports 8 independent hardware sockets for simultaneous communication, and communication efficiency Internal 32K byte transceiver buffer for TCP/IP packet processing Support power-down mode, Wake-on-LAN Integrated 10BaseT / 100Base-T Ethernet PHY Support auto-negotiation (Full/Half duplex, 10M/100M) Network status indicator pins, including network speed indicator (10M/100M), data receive/transmit activity indicator, Full/Half duplex status indication, and PHY connection status indicator Operating voltage 5V
