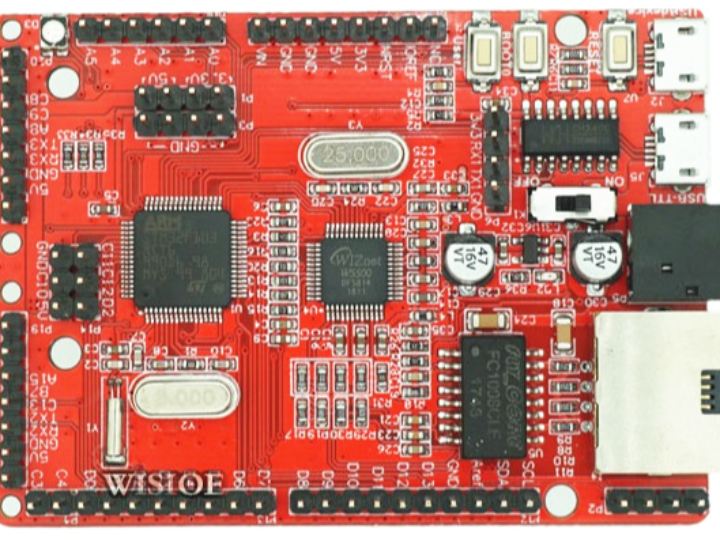

WisIOE STM32F103+W5500 development board
The W5500EVB uses the STM32F103RCT6 mainstream MCU.
1
Components
Hardware components
WIZnet - W5500
x 1
Project description
INTRODUCTION
The W5500EVB uses the STM32F103RCT6 mainstream MCU. The W5500 interacts with the MCU through a standard four-wire high-speed SPI interface. The W5500's outstanding hardware TCP/IP stack core not only provides eight independent communications, but also is fast, secure, and stable, and is widely used in the industrial field.
FEATURES
Evaluation board based on 32-bit ARM Cortex-M3 W5500 chip Hardware pin compatible with Arduino Uno Rev.3 Support 1 button switch (SW), 1 RGB LED Supported 1 Ethernet port connector / USB-micro Type B connector Supported ISP and SWD interfaces Provide a variety of reference code - loopback, DHCP, DNS.
TECHNICAL DETAILS
- MCU: STM32F103RCT6 Cortex-M3
- Ethernet: W5500 (WIZnet hardwired TCP/IP)
- Power: 5V DC power supply
- Extended I/O: 51 GPIOs (including analog peripherals using 12-bit ADCs)
- RJ-45: Single channel 10/100 Base-TX RJ-45 (57-00013QL11-1 / UDE)
- USB: USB Micro-B type (onboard USB to UART IC, USB BUS power / CP2104) - for debugging
- Onboard user interface: 1 x RGB LED
