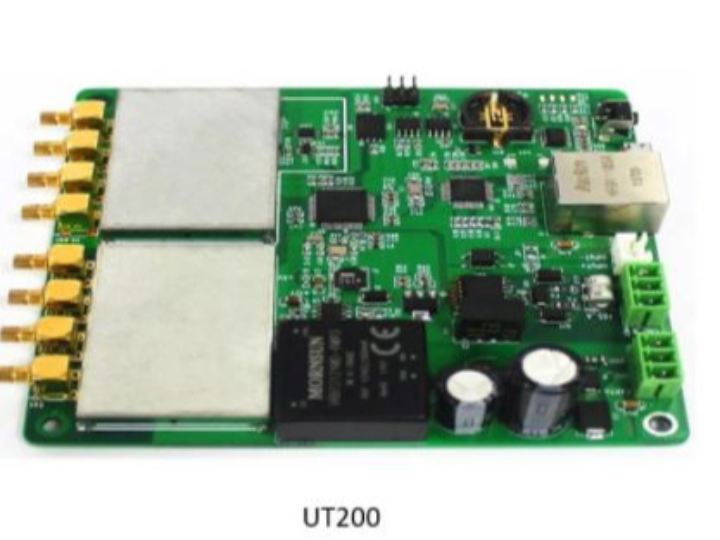

Multichannel Ultrasonic Thickness Gauge

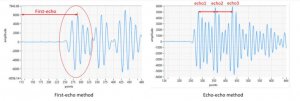

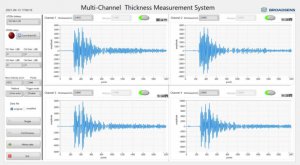

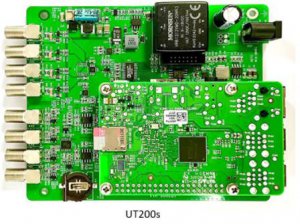

UT200 and UT200s can be controlled remotely via network interface by BroadMTM software. BroadMTM software controls the ultrasonic thickness gauges via network interface (wired or wirelessly). The gain of each channel can be individually configured manually. Each channel can be turned on and turned off. The wave speed can be adjusted manually. When using first-echo mode, the probe delay can also be configured. The data file can be transferred to the control PC for review and analysis. The data can be exported easily.   History data and waveform can also be reviewed. The signals can be zoomed in/out to check out the patterns. UT200s can also be used for inspection in structures by checking out the response signals. Welding defects, solder joints defects, broken screws and nuts can be detected easily with the help of waveform analysis. BroadMTM software also has the feature of analysis window, in which a user can define the interested analysis stating point and end point. This feature is especially for water submerged measurements when the ultrasonic probe is not in contact with the structure.
