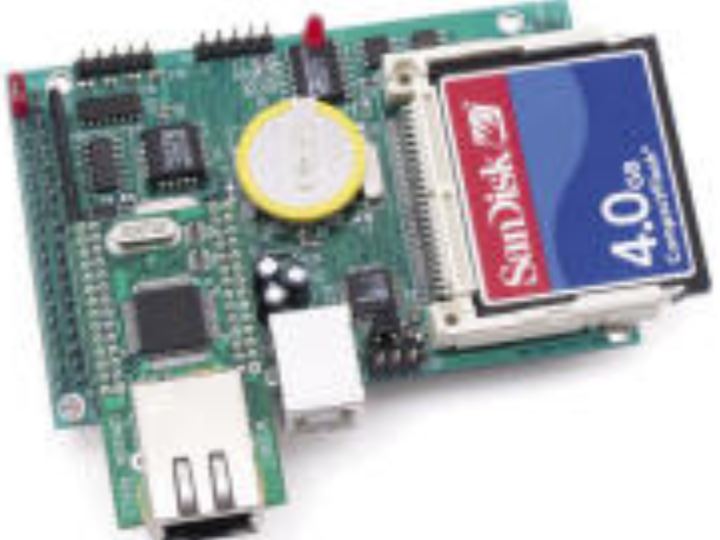

E-Engine
The EE is an ideal TCP-based embedded stand-alone board. It is a high-performance (80 MHz, 186 generation) networked controller
2
Project description
INTRODUCTION
80 MHz Ethernet controller with high-performance hardware TCP/IP stack, USB 1.1/2.0 slave interface, high-speed ADC, CompactFlash filesystem.
The ideal TCP-powered embedded stand-alone board. High performance, low cost, C/C++ programmable controller based on a 40 MHz R8820(5V) or 80MHz R1120(3.3V) 16-bit CPU.
Ideal for both OEM or prototyping purposes, the Ethernet-Engine is intended for demanding networked industrial process control and networked high-speed data acquisition applications. As embedded systems have developed, advanced connectivity has become another critically important aspect of modern embedded products.
The EE addresses this by also integrating advanced connectivity solutions such as hardware USB and TCP/IP network modules, plus Windows compatible FAT16 file system, making this the ideal core platform for your next-generation projects. For less than $65 (OEM), the EE can be configured to act as a complete, stand-alone, high-bandwidth embedded webserver.
No other system or circuit needed; the RJ45 connector is directly onboard. Your website files can be copied directly onto the PC-compatible CF card, for easiest deployment.
Or, the EE might also be used as an inexpensive, stand-alone intelligent Ethernet/TCP traffic logger capable of storing filtered data into the integrated CompactFlash interface (200+ KB/s).
