Display the power consumption of the day – Arduino power meter

Components

Hardware components

Project description

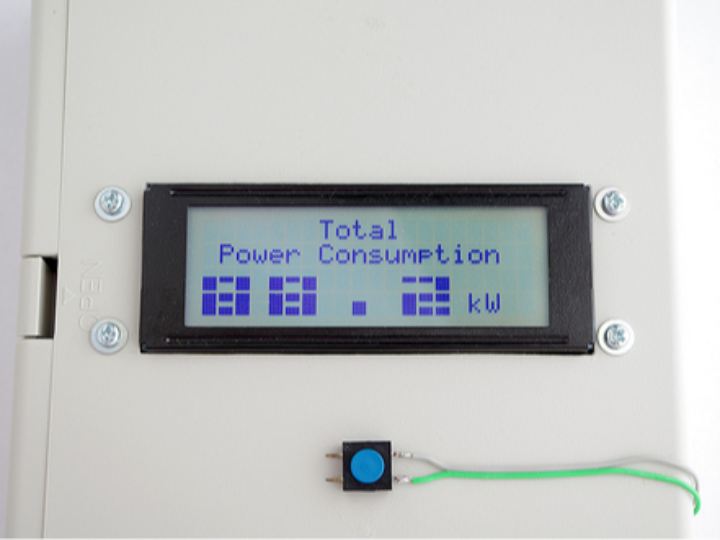

This project is a power consumption monitoring application using ethernet shield and XivelyPachube ※ 2 to the upload + accumulate the data in anywhere and at any time. Using the accumulated data “Today’s power consumption” or “highest and lowest power of today” are displayed. – Prototype It makes a part that measures the voltage and current required for the power calculations. – Circuit – 100V Transformer The power transformer of 100V side of the wire, parallel connect the varistor in, put a fuse in series. – Using Ethernet shield Data measured by the Arduino power meter to Pachube (patch…
