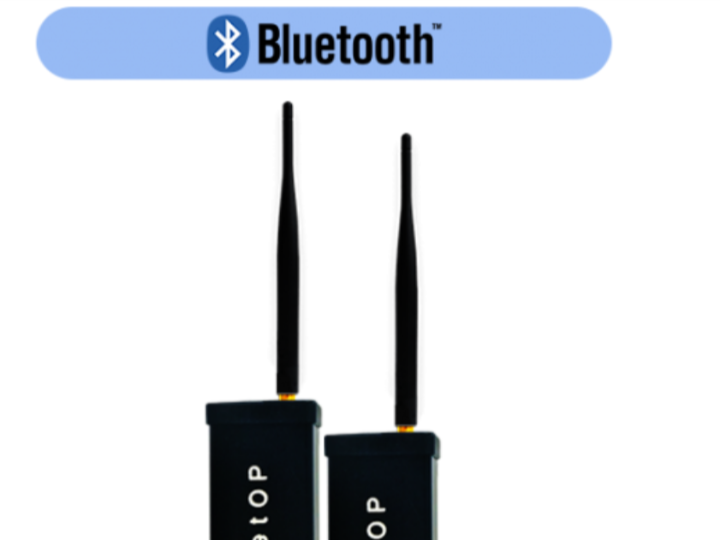

BLE Ethernet+Wifi Indoor Gateway
The BLE Ethernet+Wifi Indoor Gateway allows the existence of BLE devices in the IP protocol networks: LAN, Wi-Fi and the Internet.
3
Project description
INTRODUCTION
The BLE Ethernet+Wifi Indoor Gateway allows the existence of BLE devices (Bluetooth Smart, IoT-Internet of Things) in the IP protocol networks: LAN, Wi-Fi and the Internet. Additionaly it contains a BT2.1 receiver. Using the gateway you can for example extend the range of the sensors in the building (unique technology transmit packets from the LAN to the BLE – BLE over UDP) or keep track of on-line location of Beacons . Output can be set on/off autonomously on the basis of the identifiers list, or remotely (through LAN). Web applications Node Setup and Node Monitor give you remote access to the sensors. Using simple HTML page with WebSocket technology and JavaScript you can easily in real time sniff and display BLE advertising packets content.
FEATURES
- Configurable from your PC:
- BLE mode: AUTO SCAN or REPEATER;
- BT2.1 mode: AUTO SCAN;
- the BLE power with which the device operates from -18dBm to + 8dBm (maximum range up to 200 m in open space);
- LAN settings: IP address (static or dynamic – DHCP), network mask, gateway, DNS, NTP server;
- the name of the device in LAN & BLE;
- IP address & port for UDP broadcasting received BLE packets; multicast, unicast or broadcast for UDP is configured automatically depend on IP address;
- user password;
- admin password
TECHNICAL DETAILS
- Remote firmware update using web browser;
- Remote control using TCP/IP telnet connection at port 5500 (the same control features like using WebSocket);
- LEDs: ethernet LINK i STATUS;
- HTTP server:
- 6,9MB for user HTTP pages (www) and 1MB for HTTP system pages (www);
- WebSocket;
- max. 2 sockets simultaneously;
- Output: 60V DC or 40V AC 500 mA 2.5 Ω (solid state relay type PhotoMOS);
- RJ-45 connector 10Mbps/100Mbps Ethernet, 10BaseT; protocols: ARP, SSDP, UDP, TCP/IP, DHCP, SNTP, HTTP;
- Reset button (restore factory settings);
- Temperature sensor with a resolution of 1 °C;
- Operating temperature: from -20 to 45 °C;
- Humidity: 35-80 % RHG.
- Weight: 45 g
