B-Engine

Project description

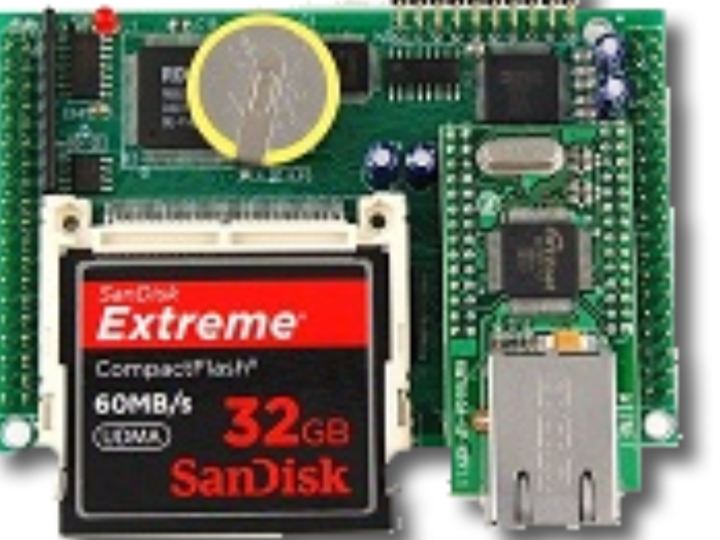

INTRODUCTION The B-Engine(BE) is a C/C++ programmable controller with +-10V bipolar analog inputs. It is intended for industrial control, power-line monitoring, high-speed data acquisition. With its high reliability and low cost, it is ideal for industrial OEM applications. A true bipolar, simultaneous sampling ADC (AD7606, 16-bit or AD7607, 14-bit) can accept +-10V or +-5V true bipolar analog signals while sampling at throughput rates up to 200 kSPS for all 8 analog inputs. Each analog input contains second-order antialansing filter, sample-and-hold amplifier and clamp protection tolerant…
