AUTOMATION WITH ARDUINO, ETHERNET, RTC, LCD AND DHT11
project with Ethernet W5100, RTC DS130, LCD I2C, DHT11, Android application & HTML page for configuring, scheduling and activating the card
2
Components
Hardware components
WIZnet - W5100 ethernet shield
x 1
Project description

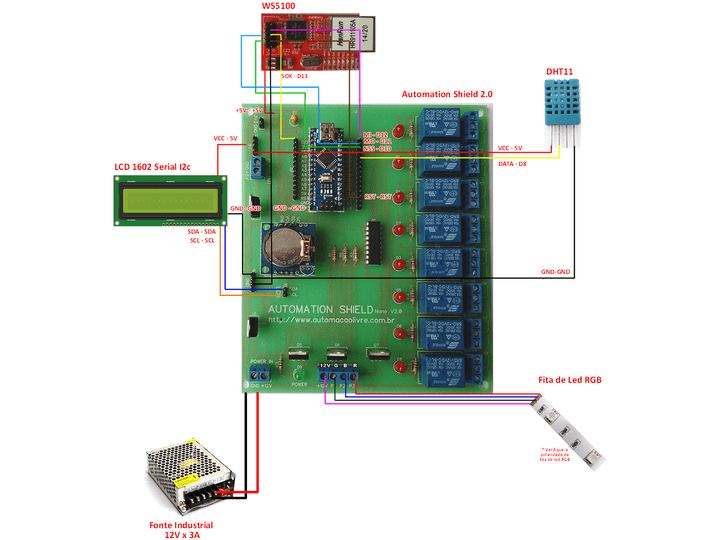

The image below shows how the ICSP connection between Shield and Arduino Nano should be. The connection must be made in such a way that the shields are connected as shown in the image below. In addition to the ICSP connection, it is necessary to jump pins D13, D12, D11 and D10. Output Connections Source Code The source code of the project is 100% compatible with the two Ethernet Shields based on the w5100 chip (Mini Shield and Arduino Uno). Html page The HTML page must be opened in the browser and can be executed from computers or Android devices. The header shows the time, temperature…
