use Xbee shield and Ethernet shield at the same time

Arduino Ethernet shield of Arduino to, the pin header above to directly bypass is equipped with a socket to be, it can be mounted on top of the other shield.

XBee shield Tasu Ethernet shield

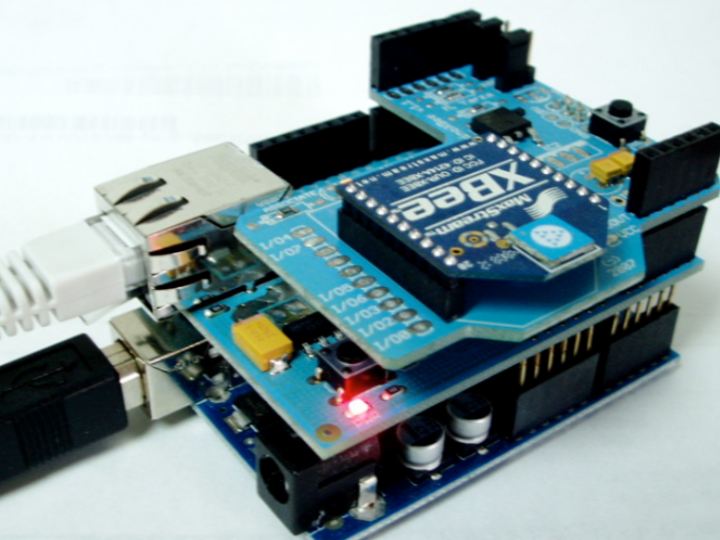

The above link also to the destination Xbee shield the Ethernet was in the three-story put on top of the shield photo There is, in fact simply and I just piled XBee does not work shield.

This is, XBee because the shield is taking the power from the (small pin header next to) ICSP pin of Arruino. This AVR to firmware because they are to use when writing the, in the shield, but I do not much use, XBee from here shield, 5V, GND , seems to have taken out a RESET (RESET is XBee the on the shield switch when you press Arduino the reset to).

So, in order to three-story, as under Ethernet (forced) 5V / from the socket on the shield GND works do it stacked after wiring the / RESET.

Bread boat forcibly wiring a jumper for (^^ ;;;
