ThingPlus WizFi250 User Guide

Thing+ Guide for Arduino(Arduino with WizFi250 & Non-SSL)

1. Install Arduino IDE
2. Environment Setting
3. Arduino Firmware install
4. Gateway Registration
5. Firmware build and upload

1. Install Arduino IDE

1) Install Arduino IDE upon PC OS environment. Please use above version. 1.6.9.

• Download Link

2. Environment Setting

1) Connect Arduino and PC.

• Connect sensors as the following.

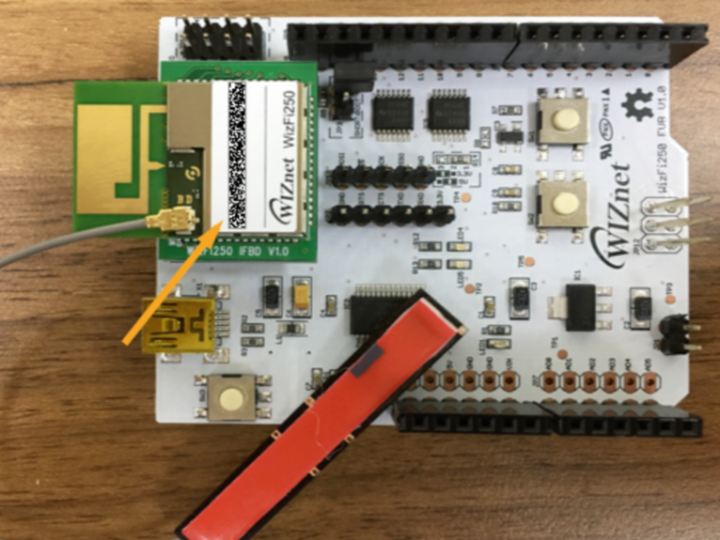

• Below is WizFi250 EVB from wiznet. Check mac address at top of wizFi250 chip.
• Connect Arduino Uno(Orange Board) with grove shield and then Connect wizFi250 EVB on there.

2) Execute Arduino IDE.
3) Select USB for Arduino Port in IDE. (for windows, COMxx)

• Tools -> Port -> Arduino/Genuino Uno

For more information, refer to this URL.

http://support.thingplus.net/en/open-hardware/arduino-noSSL-wizFi250-user-guide.html
