Temperature and humidity sensor on arduino with sending and drawing a graph

The main task of the project is to monitor the temperature in the greenhouse 11-15 meters away from the house. Without the possibility of or

WIZnet

Published February 03, 2023

Original author: LosChikatilosOriginal source (new tab)

Temperature and humidity sensor on arduino with sending and drawing a graph

Project description

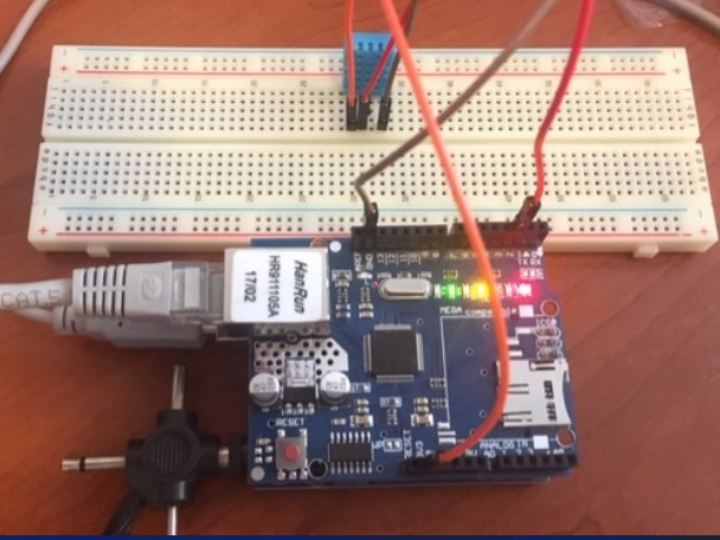

DETAILS The main task of the project is to monitor the temperature in the greenhouse 11-15 meters away from the house. Without the possibility of organizing the UTP strip and power supply before it. Greenhouse part: Take temperature / humidity with DHT-11 sensor using pro micro Send fs1000a with pro micro Home part: Accept values on mx-rm-5v using Uno Send to server using Ethernet shield (WIZNET W5100) Write to mysql database Draw a graph (jpgraph) I started out a little out of order. For me, this sequence turned out to be more complicated, so I decided to implement it first. The list of…
