Talk to your Toaster with Mule

Talk to your Toaster with Mule

WIZnet

Published February 22, 2023

Original author: Sameera MandalikaOriginal source (new tab)

Talk to your Toaster with Mule

Components

Hardware components
Gravity: Analog LM35 Temperature Sensor For Arduino

DFRobot - Gravity: Analog LM35 Temperature Sensor For Arduino

x 1

Ultrasonic Sensor - HC-SR04

SparkFun - Ultrasonic Sensor - HC-SR04

x 1

Arduino UNO

Arduino - Arduino UNO

x 1

W5100 ethernet shield

WIZnet - W5100 ethernet shield

x 1

Software Apps and online services
Arduino IDE

Arduino - Arduino IDE

x 1

Project description

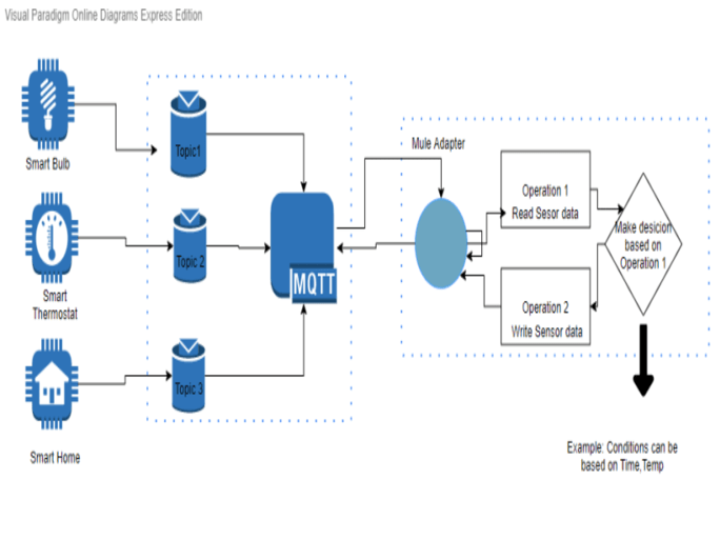

Sequential Diagram Iot-Mule-Adpater: The use case of the custom IoT-Mule Adaptor/Connector is – It connects the MQTT to Mule 4 and exposes sensor’s data to the client and allows the client to communicate back to the sensor by giving commands based on parameters. A custom connector is created to setup connection to the mosquito broker for exposing incoming sensor’s data from IoT device via a Topic i.e., esp/test and the client’s conditions are sent via another Topic i.e., mule/test back to the IoT device. This solution enables communication to-fro from the sensor to Mule and from Mule to…
