SuperLCD
SuperLCD is going to be a LCD screen which displays a wide range of readings from current room temperature in Celsius and Fahrenheit to a ca
0
Project description
DETAILS

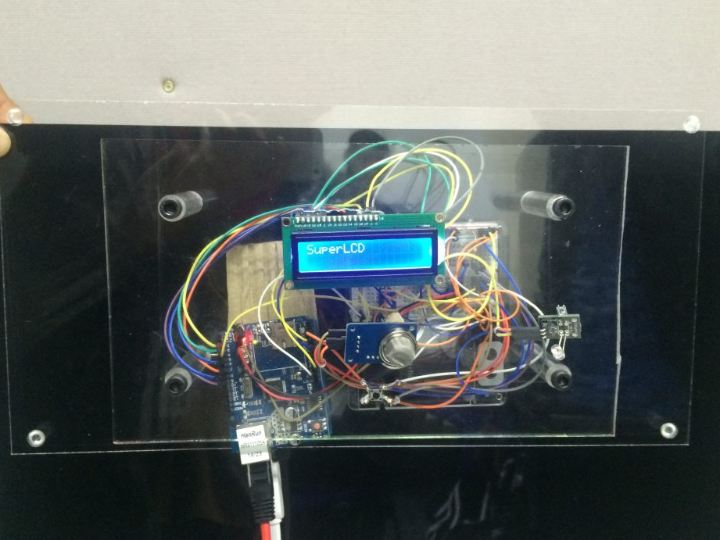

This is our final build of the SuperLCD. We followed our original plan of displaying the components in 3 rows. The first row is displaying the LCD at the centre of the enclosure. Located below the LCD are the 3 sensors that we used which are fitted in a line. On the left side of the picture below is the temperature sensor. In the middle you can see the Gas MQ-4 sensor and on the right side is the heart rate sensor. Below the sensor is the button for the user to alternate between the sensors because only one can be activated at a time.
