Streaming realtime EEG data to and from Arduino

Streaming realtime EEG data to and from Arduino

WIZnet

Published April 03, 2023

Original author: FieldTripOriginal source (new tab)

Streaming realtime EEG data to and from Arduino

Components

Hardware components
Arduino Pro Mini

Arduino - Arduino Pro Mini

x 3

W5100 ethernet shield

WIZnet - W5100 ethernet shield

x 1

Project description

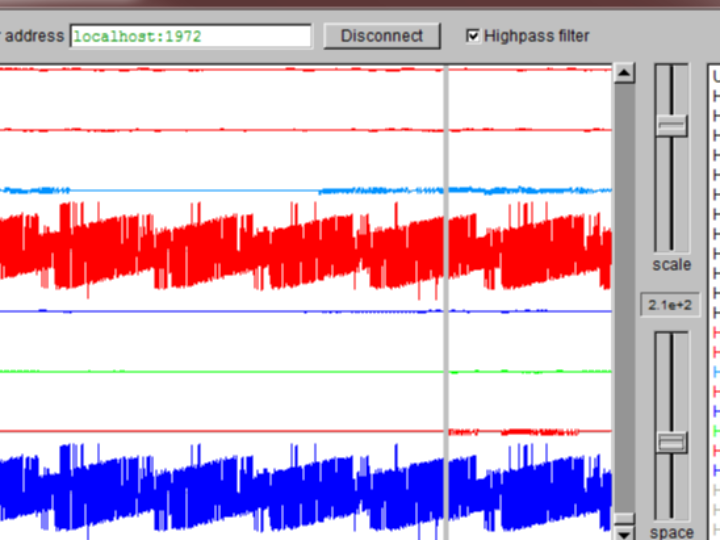

Summary The webpage provides a detailed guide on streaming real-time EEG (Electroencephalogram) data to and from Arduino devices. The setup involves three Arduino devices, a Raspberry Pi, and multiple laptops. The data flow is as follows: Arduino 1: Reads data from a gravity sensor and writes it to Bluetooth. Laptop: Runs the FieldTrip buffer and visualizes the sensor channels. Arduino 2: Connects to the network, reads data from the FieldTrip buffer, and writes it to RFM12b. Arduino 3: Reads data from RFM12b and blinks LEDs. The system is compatible with various operating systems like…
