STM32MINIShield Board
STM32MINIShield Board
3
Components
Hardware components
WIZnet - WIZ850io
x 1
Project description

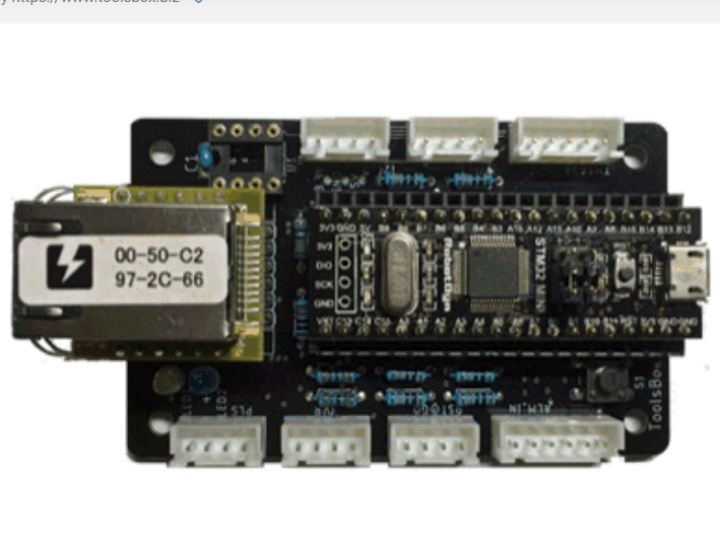

Original : https://www.toolsbox.biz/product/STM32MINIShieldEvaluation/STM32MINIShieldBoard110Spec.html This board is a board for connecting external modules to a 40pinDIP-IC module equipped with a microcomputer: STM32F103C8, commonly referred to as BluePill. I can’t find EtherNetShield for BluePill, so I’m wondering if there are Needs. You may solder directly, but it is assumed that the socket can be soldered and used so that it can be replaced. The module that connects directly to this board is assumed to be as follows. BluePill microcomputer module (RobotDyn’s STM32mini recommended)…
