Quince Arduino Mega Input Module with Ethernet

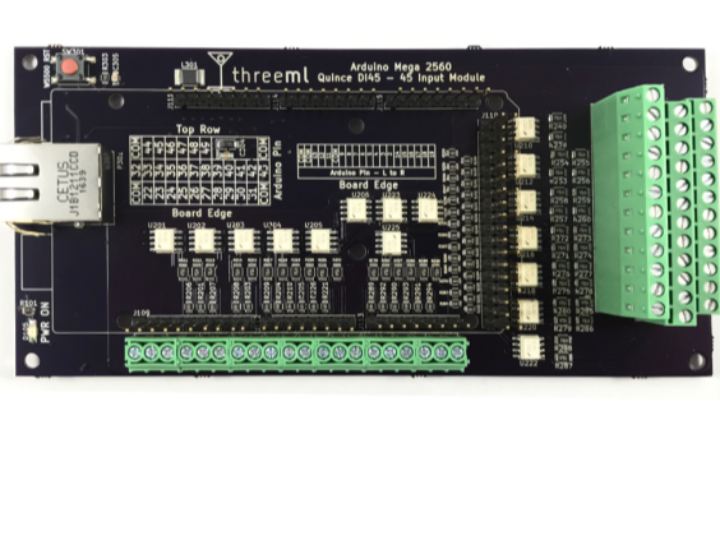

Quince is a high-density I/O module that gives the Arduino Mega 2560 45 industrial-grade isolated inputs & built-in Ethernet communications

WIZnet

Published February 14, 2023

Original author: ThreemlOriginal source (new tab)

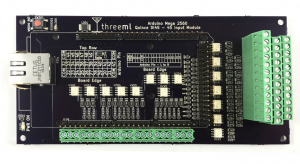

Quince Arduino Mega Input Module with Ethernet

Components

Hardware components

Project description

The Quince is a high-density I/O module that gives the Arduino Mega 2560 45 industrial-grade isolated inputs, along with built-in Ethernet communications (using the Wiznet 5500 Ethernet chip). Uses Industrial data acquisition systems Home security or automation systems Features 45 isolated inputs rated at 2.5kV of protection for 1 minute Standard 72mm width profile fits in a variety of DIN rail PCB enclosure systems Onboard Ethernet based on the widely-supported WizNet W5500 Ethernet chip Screw-terminated integrated headers with integrated wire protection Compatible with the Arduino Mega…
