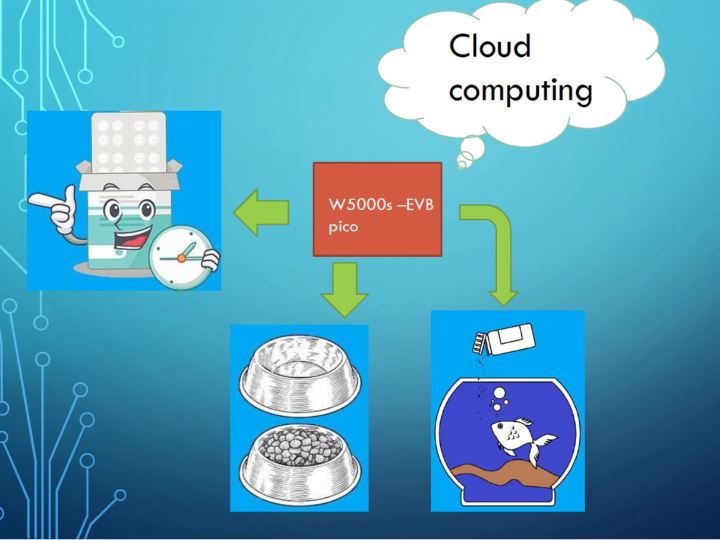

Multipurpose Pet food and medicine dispencer
WIZnet Ethernet HAT Contest winner project
6
Project description
The description of the project is as follows: Explain the 1st W5100s pico board code and working Explain the second w5100s pico board code and working Explain about the raspberry pi board Explain all the output. 1st W5100s pico board code: The first W5100s pico board is coded with the Arduino IDE. Some of the Hardware's connected to this board is a LCD display, Motor driver, 3 LED's and a servo motor. The first 6 gpio pins i.e GPIO pin 0 to GPIO pin 5 is connected to the LCD display and the connection is defined below. And it is connected from GPIO6 to GPIO9 to Motor driver to control two…
