Multi-Use Inline Power Outlet

Project description

Multi-Use Inline Power Outlet

This project is an example of Ethernet shield.
User can manage his house easily by using Arduino platform through Web.
This project would be included in Remote control category of WIZnet Museum.

Hardware components:

-. Arduino UNO & Genuino UNO

-. W5100 Ethernet shield

-. Relay

-. ttp223b capacitive touch sensor

Software apps and online services:

-. Cayenne



Story

About This Project

Using an inline power outlet (Goes between the wall socket and the plug) to control any household appliance that is wall powered from the Cayenne dashboard/app.

Can use the Cayenne scheduling feature to act as a time switch, or use the capacitive touch sensor to turn on or off the outlet.

Currently have it connected to my portable heater in the corner of the room.

The cayenne app and dashboard is perfect for this project.

What’s Connected

  • 20A Relay (Com-10924),
  • GFCI Outlet,
  • Arduino Uno,
  • TTP223B capacitive touch sensor.

Triggers & Alerts

When the capacitive touch sensor is touched, the virtual latching pin is changed between on or off, which triggers the output relay.

power control trig.PNG2046x1026 72.7 KB

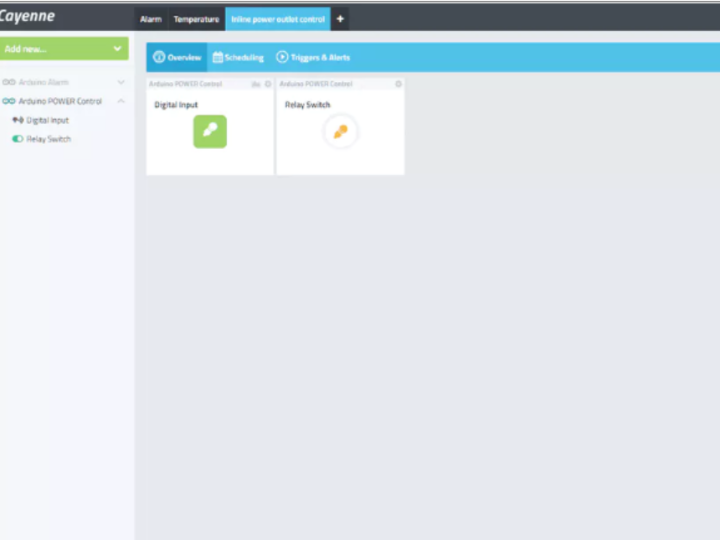

Dashboard Screenshots

powercontrol1.PNG2047x1016 39.3 KB


powercontrol2.PNG2048x1016 44.1 KB


If you want to know more in detail, refer to
