KASA

Domotic system based AVR ATmega1280 running FreeRTOS 9.

WIZnet

Published February 12, 2023

Original author: vivedoOriginal source (new tab)

KASA

Components

Hardware components

Project description

Software capabilities

  • Timed outputs
  • Constraint outputs (for motorized shutters/curtains)
  • MQTT control (WIP)
  • Alexa/GHome Integration (WIP)

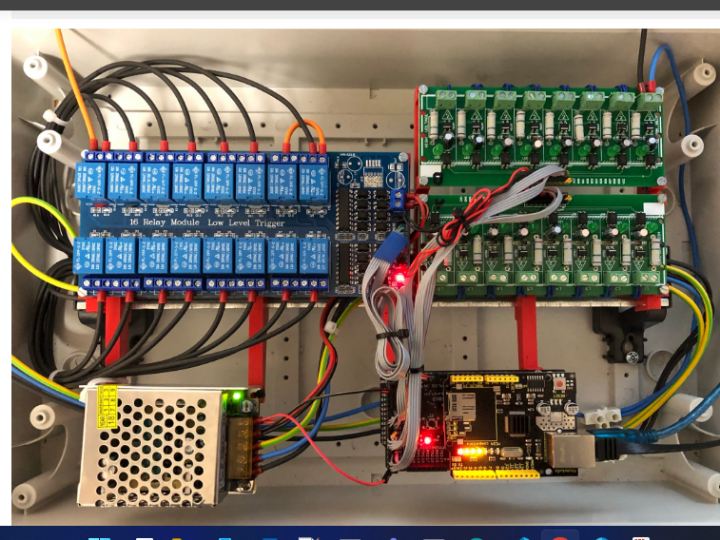

Current hardware

  • Arduino Mega 1280
  • Wiznet W5100 (Arduino Ethernet shield)
  • 8x 230V/5V optocoupler board (x2) (connected to PORTA and PORTC)
  • 16x 5V coil, 230V10A relay board (connected to PORTK and PORTL)
  • 5V2A PSU
  • DIN rail electrical box and custom 3D printed DIN headers



Original Link: https://github.com/vivedo/kasa
