How to Use the Blynk App on IoT Board(Nucleo)
Implemented a firmware of Nucleo board by Ethernet SW modification
2
Components
Hardware components
WIZnet - W5500 Ethernet Shield
x 1
Project description

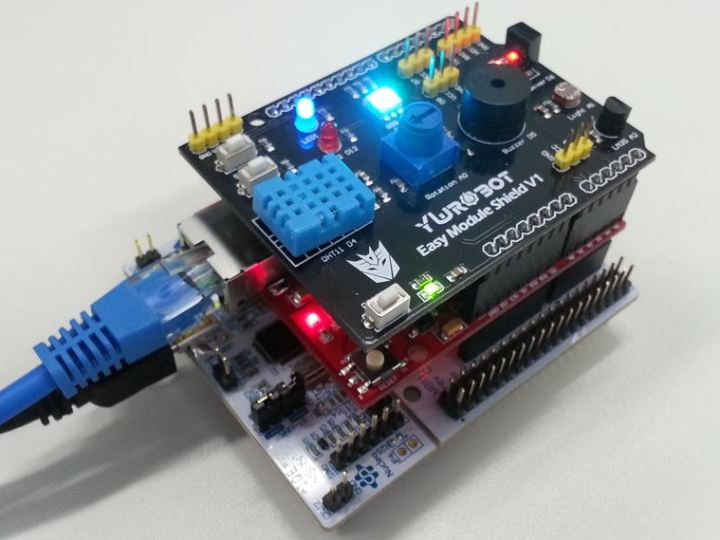

I know STMicroelectronics Nucleo platform for IoT. Recently W5500 Ethernet shield will be announced by WIZnet. So I implemented a firmware of Nucleo board by Ethernet SW modification because I can handle a source code easily. You can know the status of equipment even if it is so far. Please refer to the following step. Step 1: Prepare Materials 2 More Images Please refer to the following. 1. Nucleo board 2. W5500 Ethernet shield 3. Easy Module shield 4. LAN cable 5. USB cable Step 2: Hardware Connection Please connect an LAN cable and USB cable You can get more HW info by the following site…
