How to Control a ROBOSAPIENS Robot With Cayenne IoT

Project description

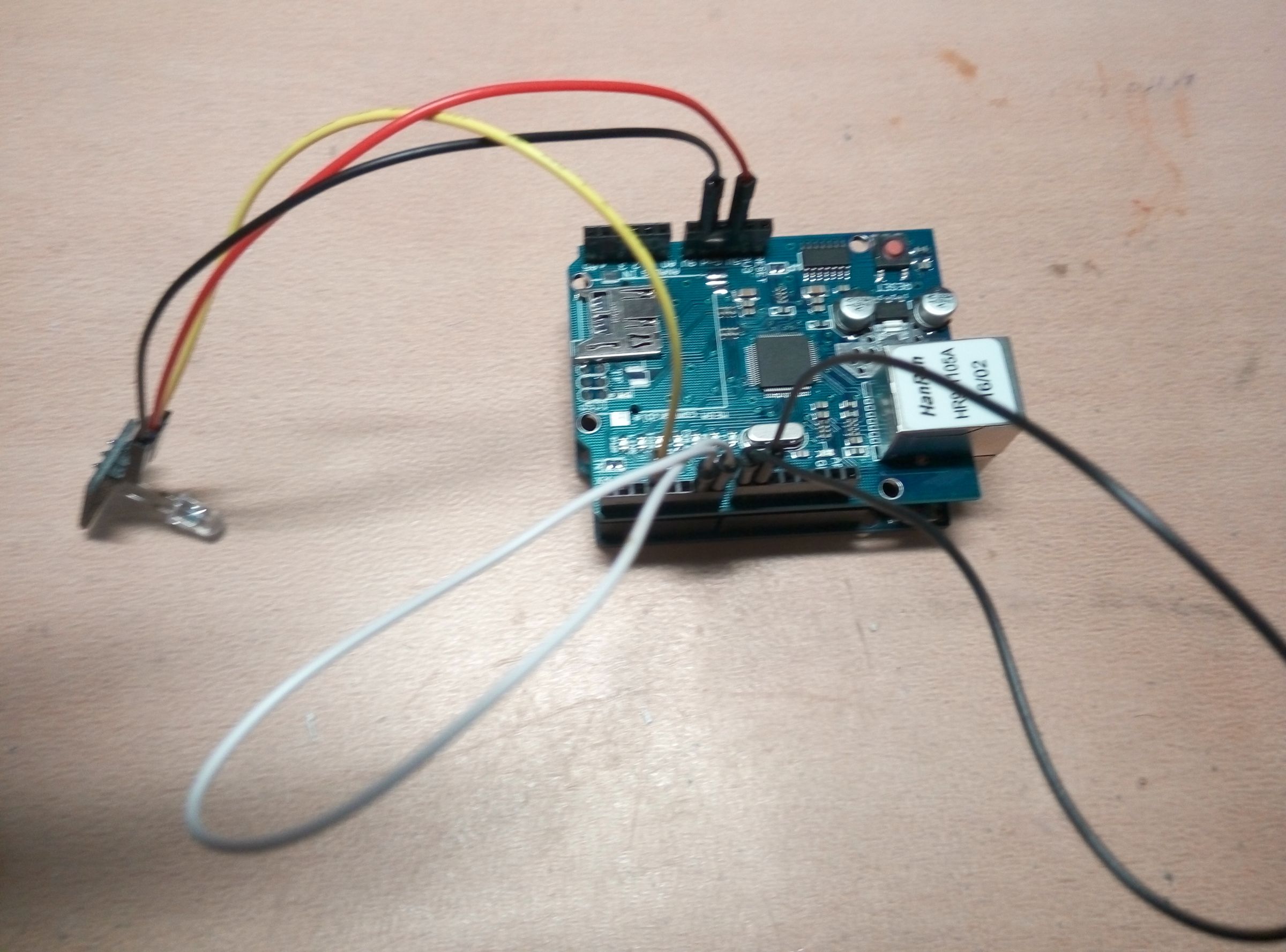

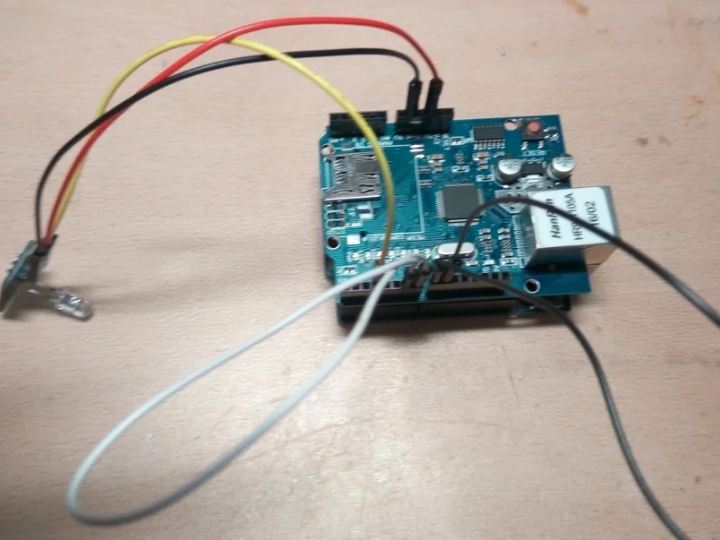

We need: – Cayenne Account – IR Emitter (mine is KEYES IR Emitter) – Arduino board (Obviously) – Arduino ethernet shield (mine is W5100) – Robosapiens (Obviously) – IRremote library (IT HAS TO BE THIS LIBRAY BECAUSE I MODIFIED IT TO WORK WITH ROBOSAPIENS) Step 1: Connect the IR Emitter to Arduino and Also the Triggers Connect the IR Emitter to Arduino board. Pinout: IR Emitter / Arduino pin “-” —> pin GND this pin doesn’t have any letter so, the middle pin —> pin 5V pin “S” —> digital pin 3 or other digital pin (It cannot be pin 0,1,2 or 13) Triggers: I was thinking what is the easiest way…
