Flashing vintage LEDs or how we warn about "fires" on the project

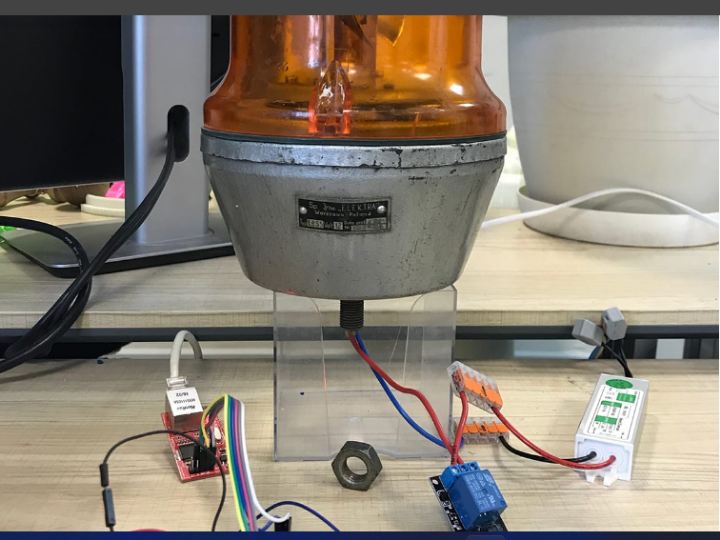

vintage Polish flasher of 1984 was discovered in the open spaces of Avito. If there's a fire somewhere, then let this thing turn on! The pie
3
Components
Hardware components
Arduino - Arduino Ethernet Shield
x 1
Project description
The code is posted on github , there is no authorization, sprawling API and beautiful html pages. MVP only, hardcore only! Use at your own risk, I warned. Solid products When the software is written, it’s time to start the flashing light. Below is a diagram that should help you understand the device. Expectation: Reality: So we replace Sonoff SV with: Arduino UNO + wiznet w5100 + Relay Pin connection: DIGITAL 10 – SS DIGITAL 11 – MOSI DIGITAL 12 – MISO DIGITAL 13 – SCK GND – GND 5V – 5V We connect the relay even easier: the signal pin to DIGITAL 4, the power wire to the flasher is hooked…
