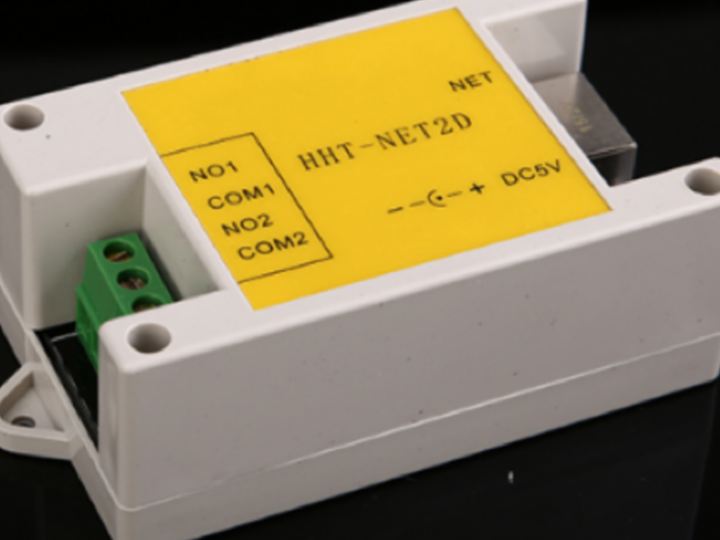

Ethernet IP 2 Way 10A Relay Board Delay Switch TCP/UDP Control Module WEB STM32

2 way 10A relay controller, with two relay normally open output, without normally closed output, can be used for intelligent home control, can be the second development with a mobile phone or computer remote control lights, motors, and other electrical equipment, to provide C + + source code . Reliable network connection, network break Yeah router restart, reliable network connection can be restored, remote control across the gateway. This product 5V power supply. Four network connections are supported in TCP server mode

Product parameters:

1. Supply voltage, 5V, not less than 1A current.

2. Two-way relay function of the largest single-way 2KW, AC load rated voltage of 250 volts, 10A current. DC load rated voltage 30V, current 5A.

4. Operating temperature -40 – +80 degrees.

Features:

1, support work in the TCP server, TCP client, UDP mode.

2, work in the TCP server mode to support four client connections.

3, support MODBUS TCP protocol, support configuration king.

4, support for online updates, very easy to customize the program.

5, to customize the device name, when the device does not have more time to record cumbersome IP number.

6, you can customize the heartbeat packet time, reliability off the network recovery.

7, is a high-performance Cortex-M3 core 32-bit microcontroller (STM32F103C8)
