Dosing peristaltic pump (PWM SSR), HX711 scale and an FSM
Finite state machine, DC motor variable speed (PWM, solid state relay), software timer objects, HX711 scale and WawiLib. Tutorial value!
3
Components
Hardware componentsSoftware Apps and online services
Project description

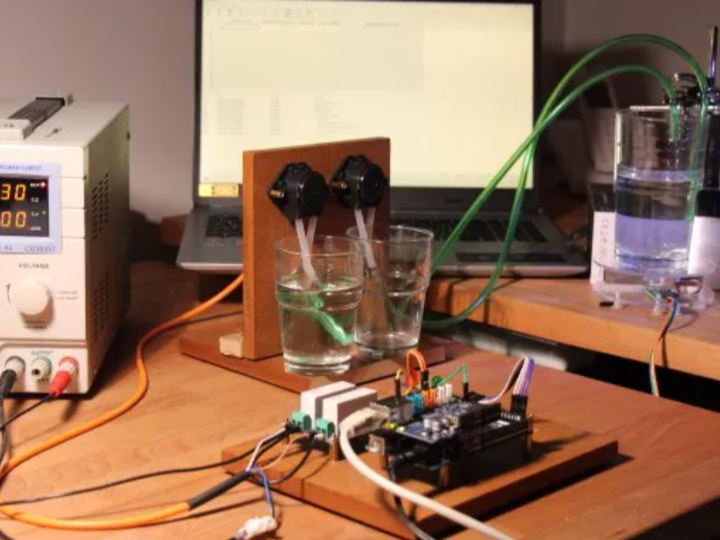

Other Hardware components: Bench Power Supply, DC X 1 OOTDTY 2 Channel SSR Solid State Relay High Lever Trigger 5A 5v12v For Uno R3 APR11_10 X 1 DC Small Dosing Pump 3V 6V 12V 24V Micro Self priming Mute Mini Peristaltic Liquid X 1 This application shows a dosing application using 2 peristaltic pumps (PWM driven via solid state relays), 1 digital weight transducer (using a HX711), a LED traffic light and an Arduino Mega2560 with an Ethernet shield. First the vessel on the scale is filled in 15 ml steps up to 100ml and then it is emptied. Commands to start and stop are issued via Ethernet…
