DISPLAY SENSOR DATA WITH AN ETHERNET CONNECTED ARDUINO WEB SERVER

Components

Hardware components
Arduino UNO

Arduino - Arduino UNO

x 1

DHT22 temperature-humidity sensor

Adafruit - DHT22 temperature-humidity sensor

x 1

W5100 ethernet shield

WIZnet - W5100 ethernet shield

x 1

Project description

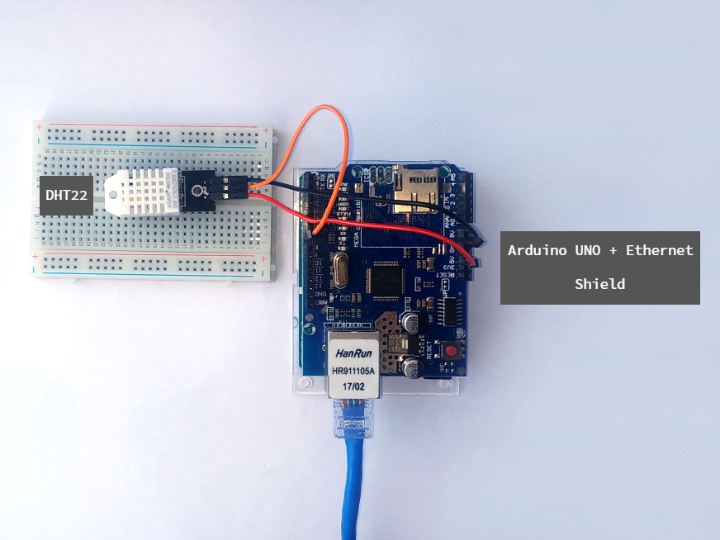

Summary: Just for the record, the Arduino alone cannot function as a web server. Unlike the Raspberry Pi, which is a fully functioning computer, Arduino requires an Ethernet shield to connect to the internet. PREPARING THE HARDWARE For this project, we are going to display DHT22 Temperature and Humidity sensor data from an Arduino and an Ethernet shield paired to a web page you can access anywhere in the world. To accomplish that, connect the following components, as shown in Figure 2: Arduino UNO DHT22 temperature and humidity sensor Ethernet shield W5100 Jumper wires After assembling the…
