Cascade of Shift Registers 74HC595 Controlled Via Arduino and Ethernet

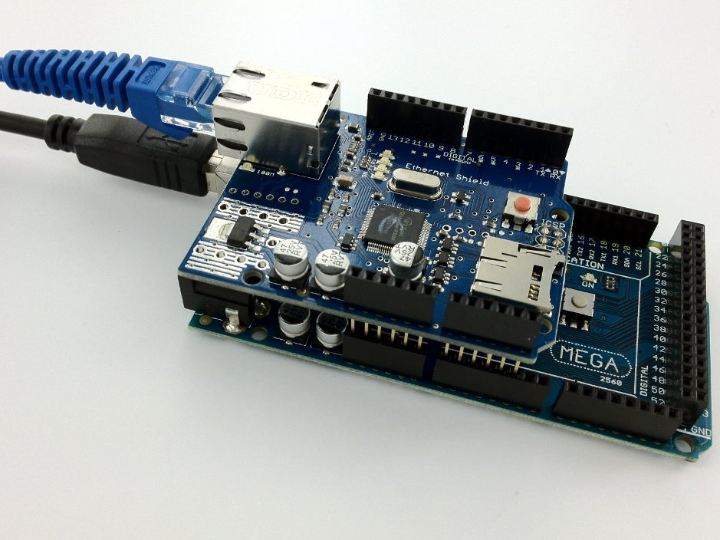

The project uses 12 shift registers 74HC595 and 96 LEDs, Arduino Uno board with Ethernet shield Wiznet W5100

WIZnet

Published February 09, 2023

Original author: martinius96Original source (new tab)

Cascade of Shift Registers 74HC595 Controlled Via Arduino and Ethernet

Components

Hardware components
W5500 Ethernet Shield

x 1

Project description

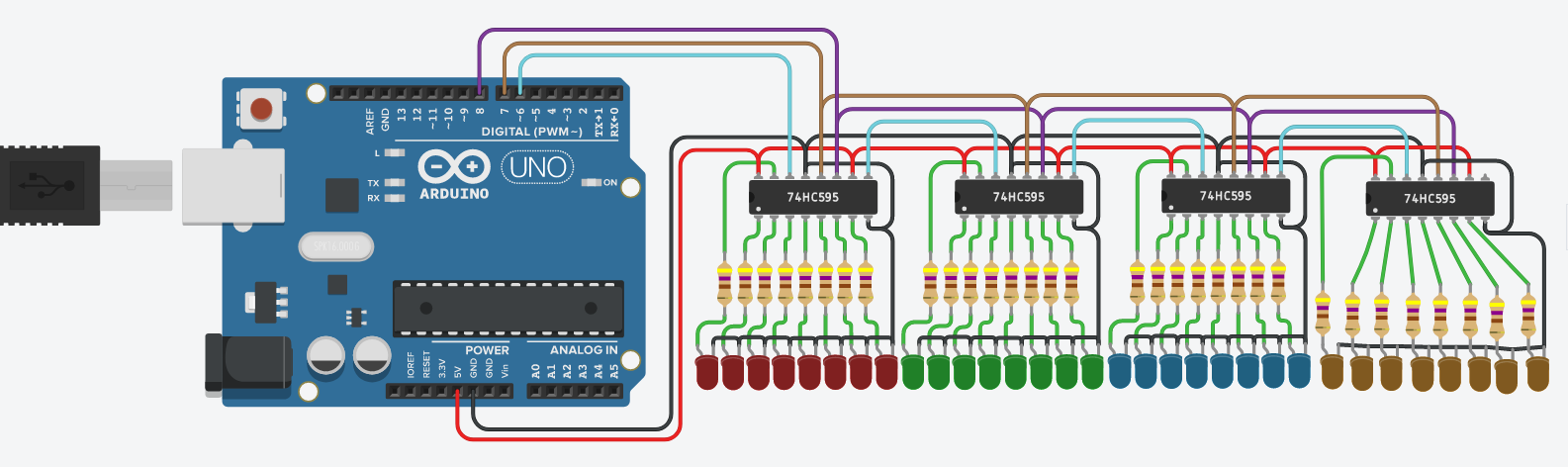

Today I would like to present a project that I have implemented in two versions. The project uses 12 shift registers 74HC595 and 96 LEDs, Arduino Uno board with Ethernet shield Wiznet W5100. 8 LEDs are connected to each shift register. The numbers 0-9 are represented by LEDs. Each shift register is equipped with 8 output terminals. Each of the 4 shift registers 74HC595 forms a logical unit – a display for listing a 4-digit number. In total, there are 3 logical displays in the project consisting of 12 shift registers. The implementations are compatible for Arduino boards Nano, Mega, Uno and…
