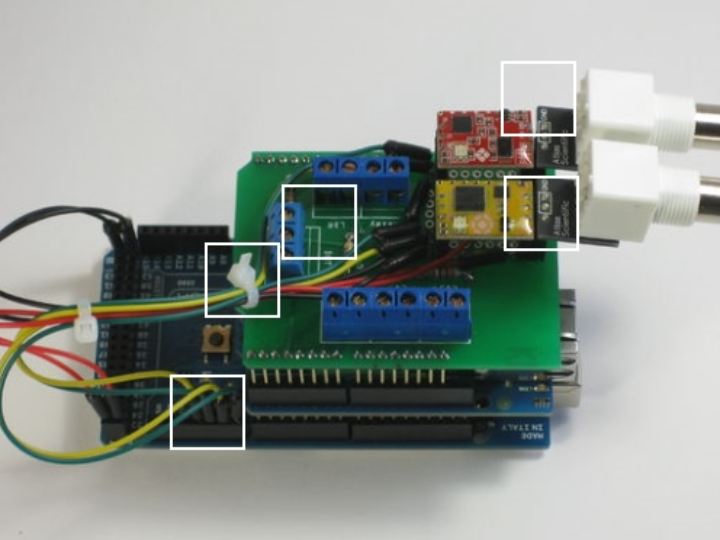

Arduino Aquaponics: EnvDAQ Upgrade with pH and Dissolved Oxygen
Arduino Aquaponics: EnvDAQ Upgrade with pH and Dissolved Oxygen
2
Components
Hardware components
Arduino - Arduino Ethernet Shield
x 1
Project description
Arduino Aquaponics is an example of Ethernet shield application where a user can easily monitor dissolved oxygen level and pH level under water. Parts 1 x Arduino Mega R3 1 x Ethernet Shield R3 1 x pH Kit: Probe, Circuit and BNC 1 x DO Kit: Probe, Circuit and BNC 1 x EnvDAQ Shield Kit -or- 1 x Breadboard 1 x DHT-22 1 x 4.7k resistor 1 x LDR 1 x 10k resistor 1 x Bi-Color (Red/Green) 5mm LED 6 x 3-Pin Female Headers (We didn’t have that so we used 3 x 10-Pin Female Headers) 8 x Male-Male jumper wires Wiring RX ->…
