Setting Up UDP Multicast on W55RP20-EVB-PICO !

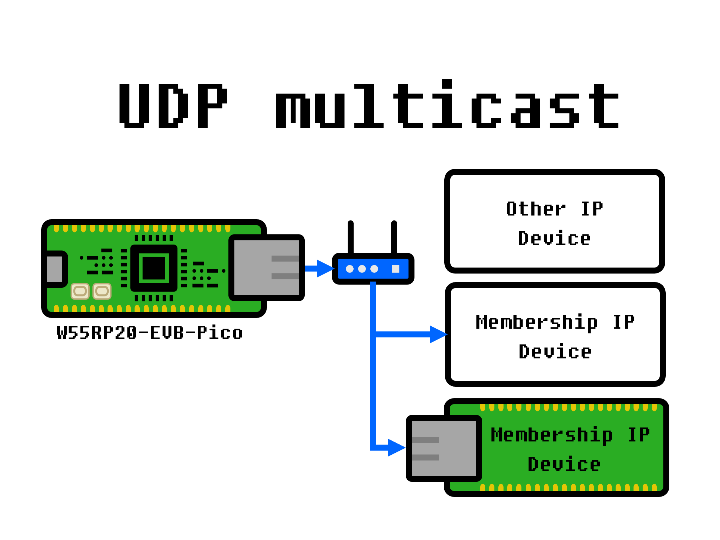

In this WCC, the W55RP20-EVB-Pico will function as the UDP multicast sender, so several socket configurations will be made.

The receivers used include the W5500-EVB-Pico, W5100S-EVB-Pico, W5500-EVB-Pico2, and a smartphone.

Additionally, since the multicast will be performed within the local network, the TTL is set to 1,

setSn_TTL(SOCKET_ID, 1);                // set TTL (1 : local)

 and the address is configured in the 224.0.0.1 range.

static uint8_t multicast_ip[4] = {224, 0, 0, 6}; // multicast ip address
static uint16_t multicast_port = 29999;          // multicast port

The multicast IP and port configured are set as the destination as follows.

setSn_DIPR(SOCKET_ID, multicast_ip);          // destination IP 설정
setSn_DPORT(SOCKET_ID, multicast_port);  // destination port 설정

Multicast differs from standard ARP(Address Resolution Protocol) usage in that a specific IP address is shared by multiple receivers. Since multicast IP addresses are directly converted to MAC addresses, ARP is not required.

Therefore, the MAC address is converted as follows

uint8_t multicast_mac[6] = {
        0x01, 0x00, 0x5e,         // First 3 bytes of the multicast MAC address
        multicast_ip[2] & 0x7f,   // Last 23 bits of the IP address(first 7 bits of 224~239 : 1)
        multicast_ip[3],          // Last 2 bytes of the IP address
        0x00                      // Remaining byte is set to 0
    };

 and configured accordingly.

// Set the MAC address (DHAR: Socket n Destination Hardware Address Register)
setSn_DHAR(SOCKET_ID, multicast_mac);

// Skip ARP (Address Resolution Protocol) and directly set the MAC address
setSn_CR(SOCKET_ID, Sn_CR_SEND_MAC);

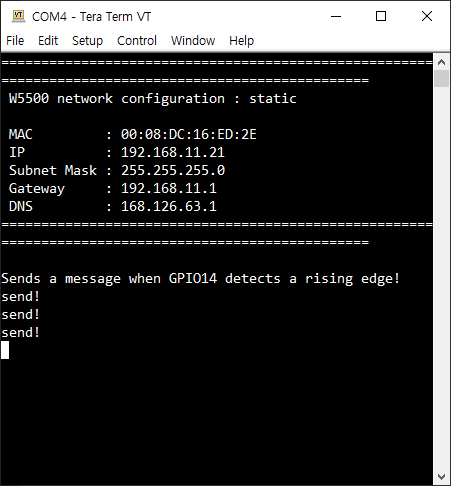

The execution screen of the sender is as follows. When a rising edge is detected on a specific GPIO, the message is sent.

The UDP multicast receiver was implemented with reference to the code below, and the smartphone was connected to the same Wi-Fi network, using the tester app for testing.

https://github.com/WIZnet-ioNIC/WIZnet-PICO-C/tree/main/examples/udp_multicast/udp_multicast_receiver

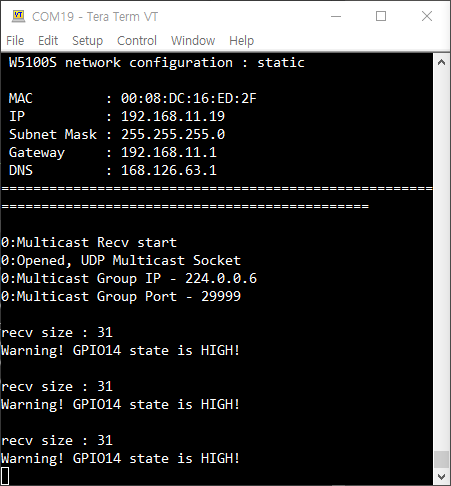

The following screen shows the receiver's display.

The video showing both the sender and receivers together is as follows.

// UDP multicast sender

#include <stdio.h>
#include "port_common.h"

#include "wizchip_conf.h"
#include "w5x00_spi.h"
#include "w5x00_gpio_irq.h"
#include "socket.h"
#include "loopback.h"
#include "multicast.h"
#include "timer.h"

/* Clock */
#define PLL_SYS_KHZ (133 * 1000)

/* Buffer */
#define SOCKET_ID 1                      // Socket number
#define ETHERNET_BUF_MAX_SIZE (1024 * 2) // Send and receive cache size

/* GPIO  */
static void gpio_callback(void);

/* Timer  */
static void repeating_timer_callback(void);
static time_t millis(void);
wiz_NetInfo net_info = {
    .mac = {0x00, 0x08, 0xdc, 0x16, 0xed, 0x2e}, // Define MAC variables
    .ip = {192, 168, 11, 21},                    // Define IP variables
    .sn = {255, 255, 255, 0},                    // Define subnet variables
    .gw = {192, 168, 11, 1},                     // Define gateway variables
    .dns = {168, 126, 63, 1},                    // Define DNS  variables
    .dhcp = NETINFO_STATIC};                     // Define the DNCP mode

static uint8_t ethernet_buf[ETHERNET_BUF_MAX_SIZE] = {
    0,
};
uint8_t data[] = "Warning! GPIO14 state is HIGH!";
static uint8_t multicast_ip[4] = {224, 0, 0, 6}; // multicast ip address
static uint16_t multicast_port = 29999;          // multicast port
int flag = 0;
volatile uint32_t prev_state = 0;
volatile uint32_t current_state = 0;
uint32_t start_ms = 0;
static volatile uint32_t g_msec_cnt = 0;

static void set_clock_khz(void);

int main()
{
    uint16_t local_port = 5000;

	uint8_t multicast_mac[6] = {
        0x01, 0x00, 0x5e,         // First 3 bytes of the multicast MAC address
        multicast_ip[2] & 0x7f,   // Last 23 bits of the IP address(first 7 bits of 224~239 : 1)
        multicast_ip[3],          // Last 2 bytes of the IP address
        0x00                      // Remaining byte is set to 0
    };
    gpio_init(14);
    gpio_init(15);
    gpio_set_dir(14, false);
    gpio_set_dir(15, true);
    gpio_put(15, 1);

    set_clock_khz();

    /*mcu init*/
    stdio_init_all(); // Initialize the main control peripheral.
    wizchip_spi_initialize();
    wizchip_cris_initialize();
    wizchip_reset();
    wizchip_initialize(); // spi initialization
    wizchip_check();

    wizchip_1ms_timer_initialize(repeating_timer_callback);
    wizchip_gpio_interrupt_initialize(SOCKET_ID, gpio_callback);

    network_initialize(net_info);

    print_network_information(net_info); // Read back the configuration information and print it

    setSn_DIPR(SOCKET_ID, multicast_ip);    // Set destination IP
    setSn_DPORT(SOCKET_ID, multicast_port); // Set destination port
	setSn_DHAR(SOCKET_ID, multicast_mac); // Set the MAC address (DHAR: Socket n Destination Hardware Address Register)
	setSn_CR(SOCKET_ID, Sn_CR_SEND_MAC); // Skip ARP (Address Resolution Protocol) and directly set the MAC address
    setSn_TTL(SOCKET_ID, 1);                // Set TTL (1 : local)

    // 소켓 초기화
    if (socket(SOCKET_ID, Sn_MR_UDP, local_port, SF_MULTI_ENABLE) != SOCKET_ID)
    {
        printf("Failed to open socket\n");
    }
    printf("Sends a message when GPIO14 detects a rising edge!\n");

    while (1)
    { }
    }
}

static void set_clock_khz(void)
{
    // set a system clock frequency in khz
    set_sys_clock_khz(PLL_SYS_KHZ, true);

    // configure the specified clock
    clock_configure(
        clk_peri,
        0,                                                // No glitchless mux
        CLOCKS_CLK_PERI_CTRL_AUXSRC_VALUE_CLKSRC_PLL_SYS, // System PLL on AUX mux
        PLL_SYS_KHZ * 1000,                               // Input frequency
        PLL_SYS_KHZ * 1000                                // Output (must be same as no divider)
    );
}

/* GPIO */
static void gpio_callback(void)
{
    current_state = millis();
    if((current_state - prev_state) > 500) {
        sendto(SOCKET_ID, data, sizeof(data), multicast_ip, multicast_port);
        printf("send!\n");
        prev_state = current_state;
    }
}
/* Timer */
static void repeating_timer_callback(void)
{
    g_msec_cnt++;
}

static time_t millis(void)
{
    return g_msec_cnt;
}
