How Does a Reconfigurable Multi-Channel Data Acquisition Patent Use WIZnet W5500?

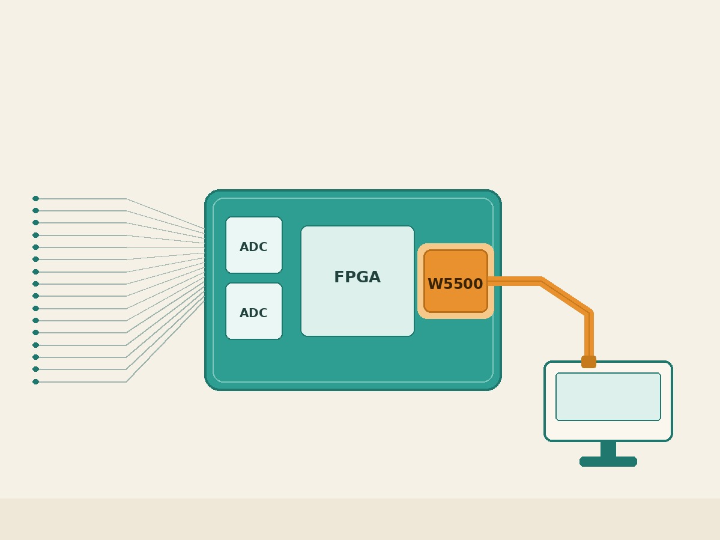

A patent from Southwest Univ. of Science & Technology reconfigures two ADCs for multi-channel or high-rate sampling, streaming data over Ethernet via W5500.
0
Components
Hardware components
WIZnet - W5500
x 1
Project description
📌 Overview CN111342841B is a granted Chinese invention patent for a reconfigurable multi-channel signal acquisition and transmission system. It was filed on 2020-03-10 by Southwest University of Science and Technology, published on 2020-06-26, and granted on 2023-02-28, with inventors Wu Chun, Yang Dongxu, Jiang Hong, Zeng Min, Yi Zhiqiang, and Liu Xiong. The patent tackles a familiar problem in data acquisition hardware: a board can offer many input channels or a fast sampling rate, but getting both usually means adding more ADC chips, which raises cost. The disclosed answer is a Xilinx…
