ArchiNet: Newsan's W5500 Ethernet and ESP32-S3 Connectivity Board for the ARCHI RP2040 Platform
Newsan Lab's ArchiNet adds W5500 wired Ethernet plus ESP32-S3 Wi-Fi/BLE to its mass-produced ARCHI RP2040 education board, with open KiCad files.
0
Components
Hardware components
WIZnet - W5500
x 1
10/100 Ethernet with hardware TCP/IP on SPI to ARCHI
Espressif - ESP32
x 1
ESP32-S3 Wi-Fi/BLE 5.0 coprocessor, controlled by ARCHI via UART JSON
Raspberry Pi - RP2040
x 1
ARCHI main board, runs CircuitPython
Adafruit - Adafruit_CircuitPython_Wiznet5k
x 1
W5500 driver used on ARCHI
Project description

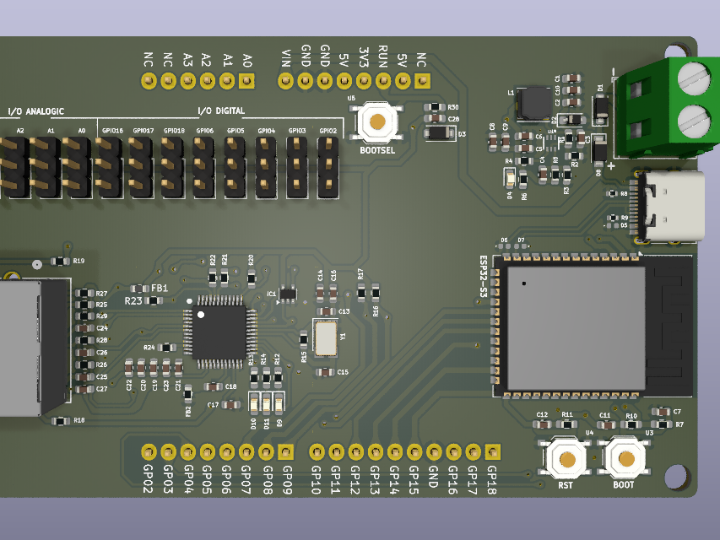

Overview ArchiNet is a connectivity board from Newsan Lab, the design and development lab of Argentine electronics manufacturer Newsan. It gives the company's ARCHI RP2040 board wired Ethernet through a WIZnet W5500, plus Wi-Fi and Bluetooth Low Energy through an ESP32-S3. ARCHI is not a hobby prototype. In April 2024, Newsan began producing the first 5,000 ARCHI boards at its industrial complex in Ushuaia, Tierra del Fuego, as the hardware half of an education platform for electronics, programming, robotics, home automation, IoT, and AI. ArchiNet, published in October 2024, is the add-on…
