Overview

Lingkong LK3U and ZK3U are FX3U-compatible PLC families whose user manual exposes W5500 directly in the Ethernet register and fault-code interface. The evidence is not only a marketing phrase: M8404 reports W5500 reset readiness, D8413 is assigned to W5500 program version, and error codes 6392 and 6394 identify W5500-related Ethernet failures.

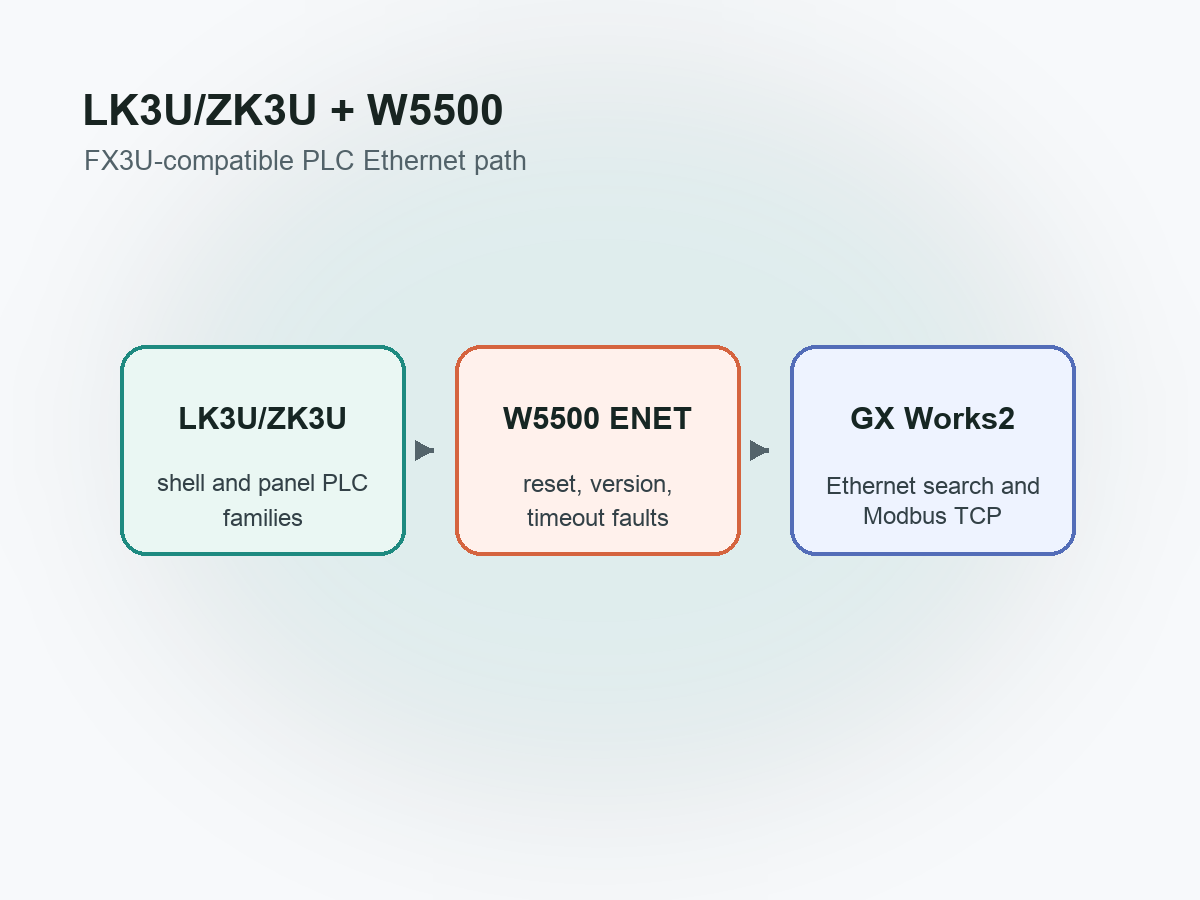

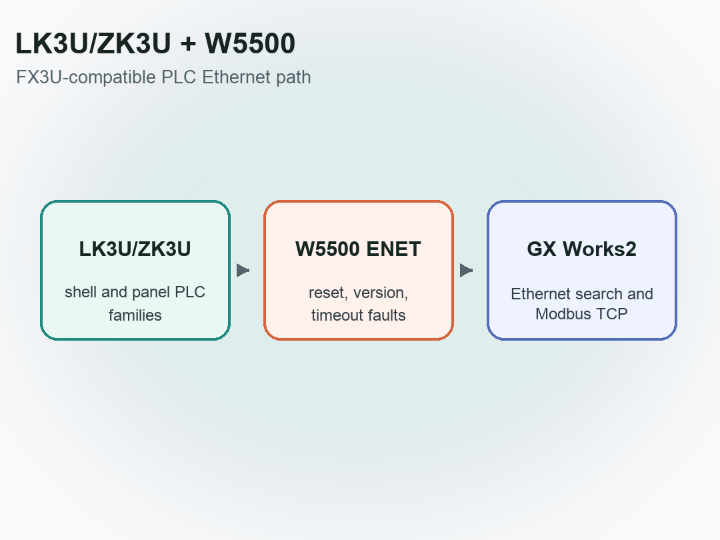

Generated compact overview: the LK3U/ZK3U PLC families use a W5500-backed ENET path for Ethernet programming and Modbus TCP functions.

Lingkong describes itself as an industrial automation company based in Huizhou, China, focused on cost-effective PLC products and expansion modules. The LK3U/ZK3U manual is machine-translated from Chinese to English, so this article uses it as technical evidence but avoids over-interpreting wording that may come from translation.

System Configuration

The LK3U/ZK3U line includes shell-type and panel-type PLC models with 14, 20, 32, 48, and 64 I/O options. The manual describes DC 24 V operation, built-in RS232 and RS485 ports, CAN expansion, analog I/O, 32,000 step capacity, and compatibility with GX Works2-style FX3U programming workflows.

System Architecture and Data Flow

The Ethernet section describes eight independent ports, default MELSOFT connection channels, a Modbus TCP server channel, SNTP support, and Modbus TCP/UDP client behavior. The PLC can be searched from GX Works2 over Ethernet, while the W5500-related special relays and D registers expose the Ethernet adapter state to troubleshooting and ladder-program logic.

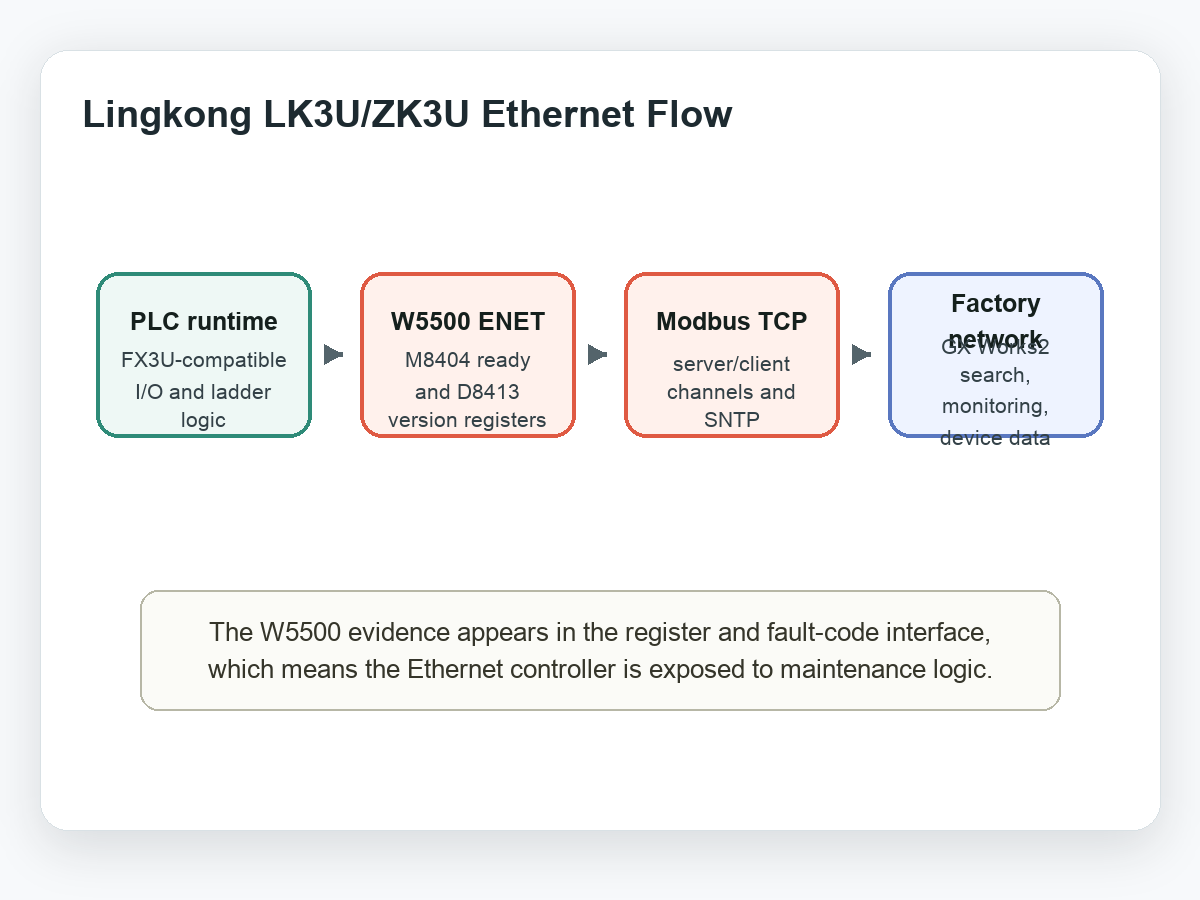

Generated technical diagram: W5500-backed ENET connects the PLC runtime to Modbus TCP, SNTP, and GX Works2 Ethernet access.

Manual Evidence for W5500

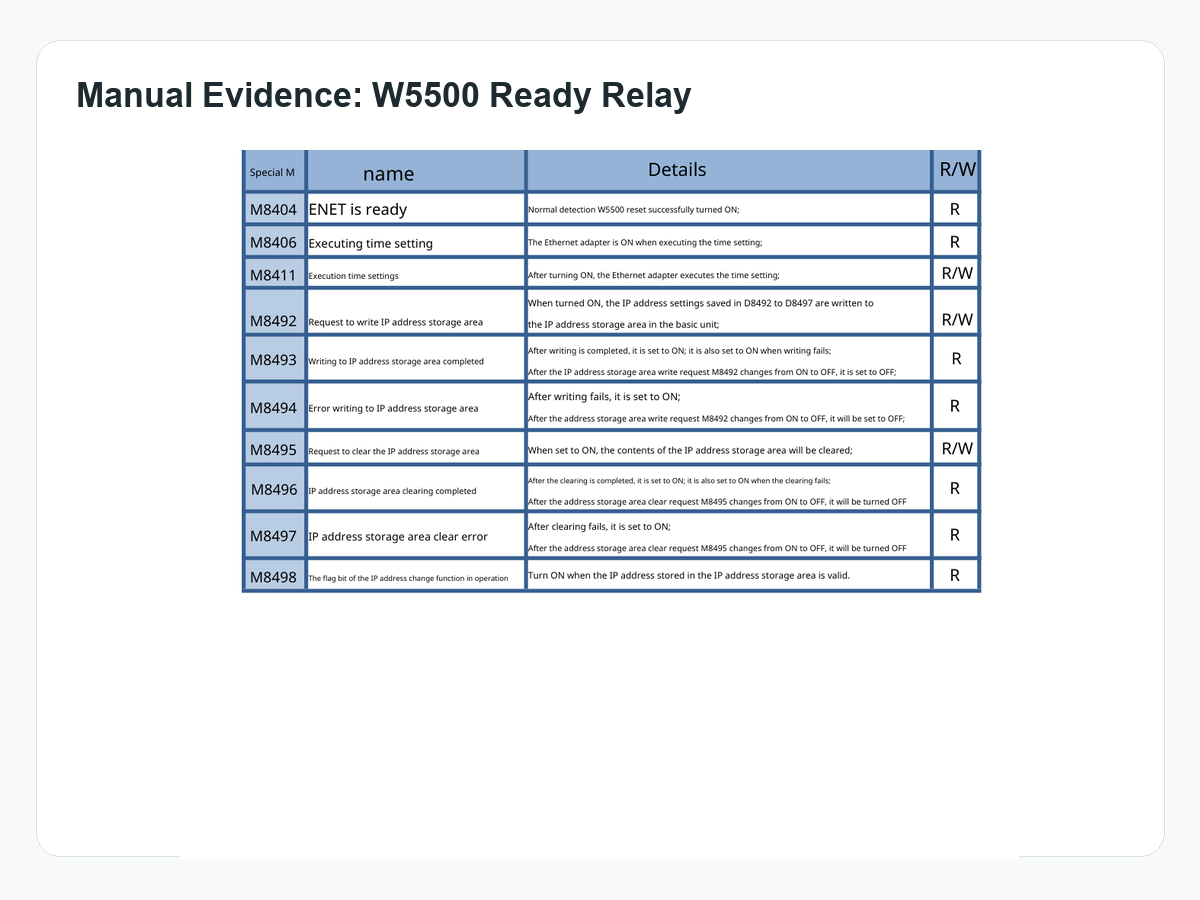

Manual excerpt: the M8404 relay indicates normal W5500 reset and readiness in the Ethernet register map.

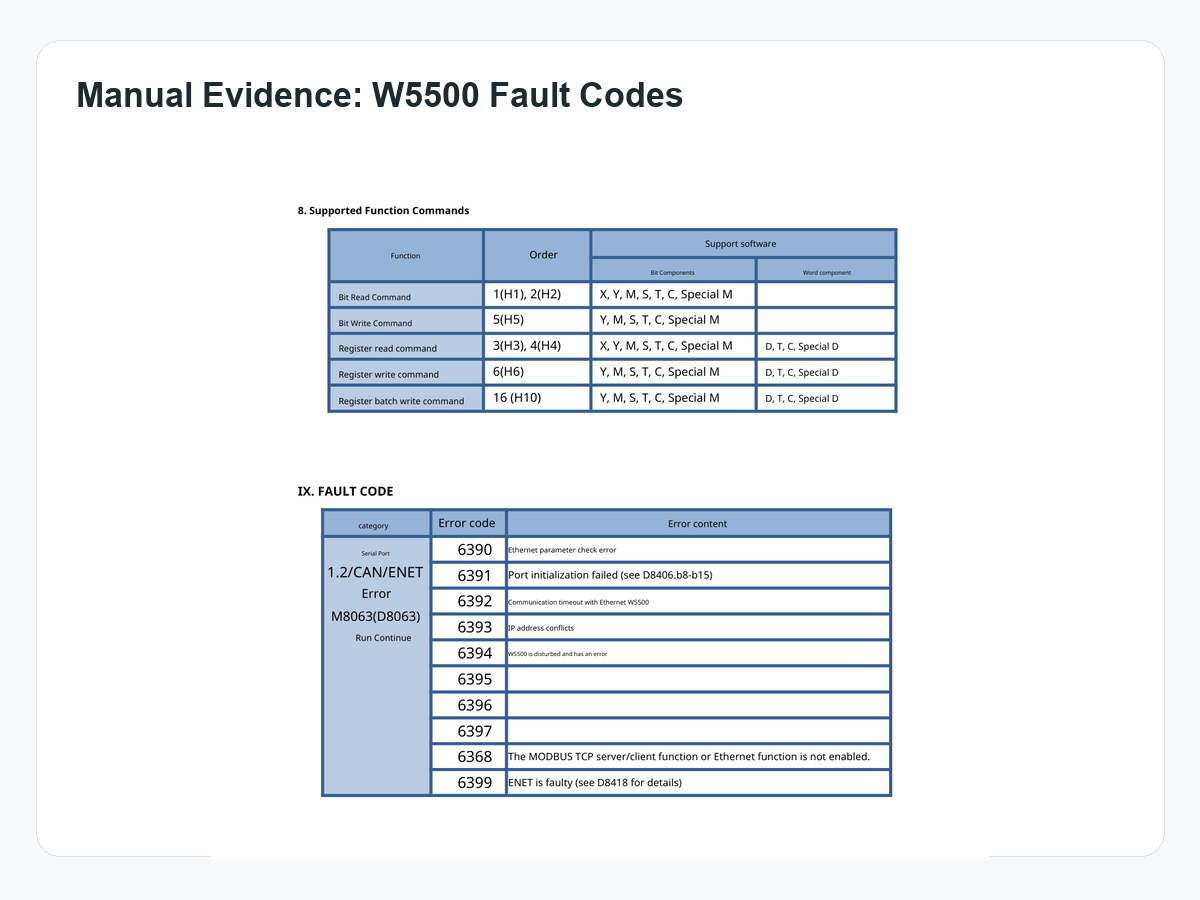

Manual excerpt: the fault table includes W5500 timeout and disturbance errors for Ethernet troubleshooting.

Role of the WIZnet Chip

W5500 is the wired Ethernet controller exposed by the LK3U/ZK3U ENET function. Its role is visible through maintenance objects rather than source code: reset readiness, program version, Ethernet connection state, destination IP/port registers, and fault codes all refer to the W5500-backed adapter path. For WIZnet, that makes the manual a useful commercial PLC adoption example.

Product Family and Availability

LK3U is presented as a shell-type PLC line and ZK3U as a panel-type line, with multiple I/O counts across each family. The public Lingkong store and manual do not show a stable MSRP for every configuration, so availability should be treated as vendor or reseller dependent. The important product-family point is that Ethernet is part of the FX3U-compatible control environment rather than a separate maker add-on.

Where It Fits

This product family fits small-machine control, factory retrofit, and training environments where Mitsubishi FX3U compatibility and Ethernet programming are useful. It also links W5500 to real PLC maintenance workflows: if Ethernet does not work, the user manual points technicians to W5500 reset, timeout, and disturbance fault evidence. The limit is that no schematic or firmware source is public.

Related WIZnet Maker Projects

• FX3U-32MT-6AD-2DA with w5500 is related because it is another FX3U-compatible W5500 PLC product-family case.
• AMX-FX3U-26M series PLC controller is related through W5500, FX3U compatibility, RJ45 Ethernet, and Modbus support.
• STM32 + W5500 Modbus TCP Server is related as a firmware-level Modbus TCP reference for what these PLCs expose as finished product behavior.

FAQ

Q. What proves that LK3U/ZK3U uses W5500? The manual lists W5500 reset readiness, W5500 program version, and W5500-specific Ethernet fault codes in the ENET register and troubleshooting sections.

Q. Is LK3U/ZK3U a PLC product or a maker project? It is a commercial PLC product family, so this Maker entry should be treated as a VAR adoption case.

Q. Which protocols are relevant? The Ethernet section covers MELSOFT access, Modbus TCP/UDP server and client behavior, SNTP, and GX Works2 Ethernet search workflows.

Q. Does the manual show source code? No. The evidence is from user-facing registers, features, and fault-code tables rather than firmware source.

Q. Why is this useful for WIZnet? It shows W5500 appearing in a PLC product line where Ethernet troubleshooting and industrial protocol compatibility are part of normal user documentation.

The source manual, official vendor pages, WIZnet W5500 product page, and related Maker references are attached in the Documents panel.
