Smart Farm Station (Basil cultivation)

This project aims to develop a smart farm system for basil cultivation. It utilizes an AI-based monitoring system and automated environmental control to achieve

Benjamin

Published November 30, 2023

Smart Farm Station (Basil cultivation)

Components

Hardware components
Software Apps and online services

x 1



Project description

Basil Cultivation Smart Farm Station

Introduction

This project aims to develop a smart farm system for basil cultivation. It utilizes an AI-based monitoring system and automated environmental control to achieve efficient plant cultivation.

Begin by asking ChatGPT about the best conditions for growing basil.

Smart Farm Station (Basil cultivation), Introduction

Technology Stack & Tools

  • Programming Language: Python
  • Web Framework: Streamlit
  • AI Modeling: YOLOv8 for image detection
  • Hardware Control: W5100S-EVB-Pico board, TCP communication for smart farm control
Technology Stack & Tools

Team Composition & Roles

My Role:

  • AI Modeling: Using YOLOv8 for analyzing plant growth and health status
  • Web Application Development: Building an interface with StreamlitTeam Composition & Roles
streamlit run main.py
  • Camera Server Setup: Capturing and transmitting real-time images from the smart farm
Team Composition & Roles

Theo's Role:

  • Smart Farm Control System Development: Managing hardware and sensor data integration for the smart farm

Team Composition & RolesTeam Composition & Roles



Web Application Design & Features

Real-Time Monitoring

  • The web application, developed using Streamlit, enables users to view real-time images and sensor data (temperature, humidity, brightness) of the smart farm.
  • Supports database reset functionality.
Web Application Design & Features
  • Code Example:
st.image(img, use_column_width=True)
df = pd.DataFrame(sensor_data, columns=['Date', 'Temperature', 'Humidity', 'Brightness'])
st.table(df)

Start Cultivation Button

  • Pressing the 'Start Cultivation' button sends optimal initial values for basil cultivation (Temperature: 23°C, Humidity: 55%, Brightness: 500, Watering Cycle: 36 hours) to the TCP Client controlling the sensors via the Pico.
  • Initiates the display of growth information (e.g., time elapsed since cultivation start, current growth stage)Web Application Design & Features
  • Code Example:
if st.button('🌱 재배 시작!', key='start_growing_button'):
    st.session_state['start_time'] = datetime.now()
    tcp_client_send_data()

Current Status Button

  • The 'Current Status' button fetches and displays the latest image from the Camera server, updating the on-screen visuals with the current status of the smart farm.
  • Code Example:
if 'refresh_image' in st.session_state:
    img_url = "http://192.168.0.10/16"
    response = requests.get(img_url)
    new_image_path = os.path.join(image_save_path, f'image_{st.session_state["refresh_image"].strftime("%Y%m%d%H%M%S")}.jpg')
    with open(new_image_path, 'wb') as file:
        file.write(response.content)
    st.session_state.pop('refresh_image



Results & Future Plans

As of the current date (November 28, 2023), the smart farm system has been set up, and basil has been planted. It is expected that cotyledons (seed leaves) will develop around 7 to 10 days after planting. Updates will be provided as the plants grow and reach different stages of development. Stay tuned for further updates on the progress and growth of the basil in our smart farm system.

Results & Future Plans

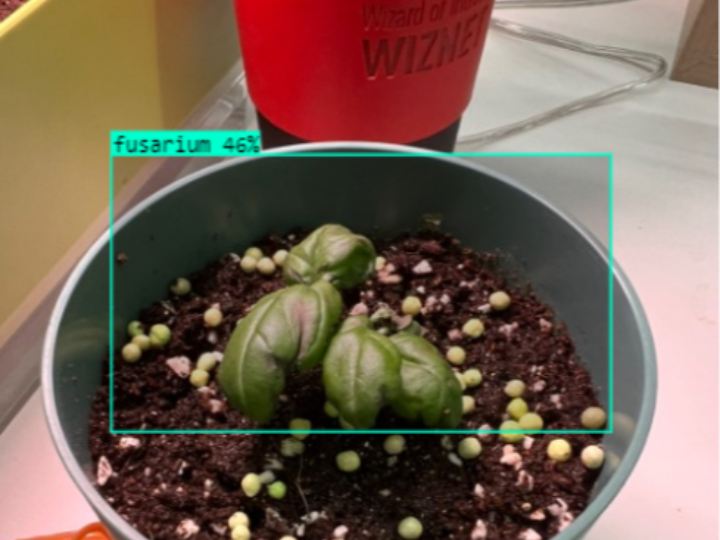

Additionally, we plan to incorporate an AI model into the system. This AI feature will detect the condition of basil leaves, identifying whether they are healthy, affected by fusarium, or showing signs of powdery mildew. This enhancement aims to provide more precise and automated monitoring of plant health within the smart farm environment.

Results & Future Plans

Documents

  • webui - Streamlit app

  • Camera Server - W5100S-evb-pico with Arducam
