[ICC] PoE + Pico + W5xxx-io Board Production History
PoE + Pico + W5xxx-io board making process.
6
Project description

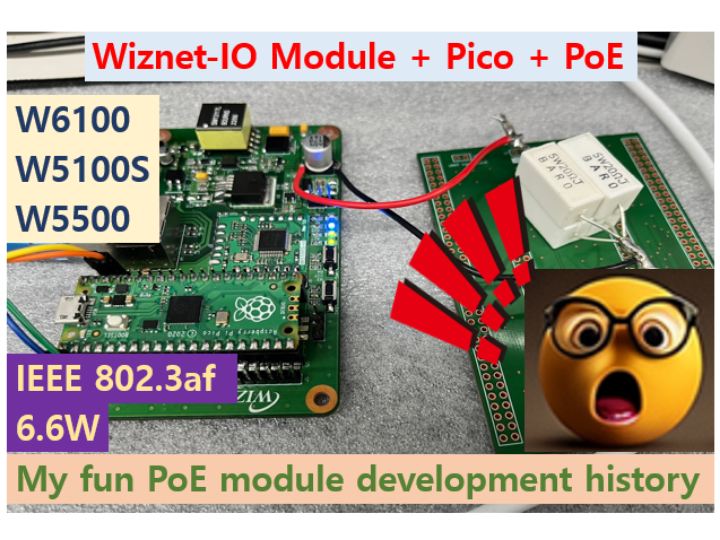

As the title suggests, PoE + Pico + W5xxx-io boards were produced. The circuit and characteristics are consistent with the article below, so please refer to the article in the link below. https://hackaday.io/project/188560-what-is-poe-my-tough-poe-development-process The concept is to develop a development board that can be developed by combining MCU and PoE in any way on the W5xxx Chip. The existing PoE circuit will be developed by installing WIZnet's io module, removing the connected pins, and connecting them with MCUs https://docs.wiznet.io/Product/ioModule However, the W5500 is not…
