It's time for the USB C Type Ethernet to be commercialized
It's time for the Ethernet Connector to change to ultra-small.
1
Project description

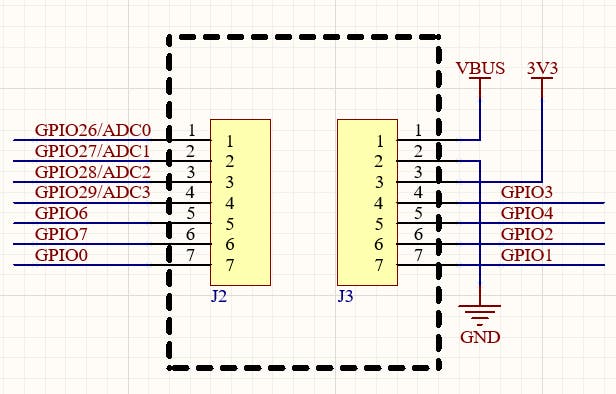

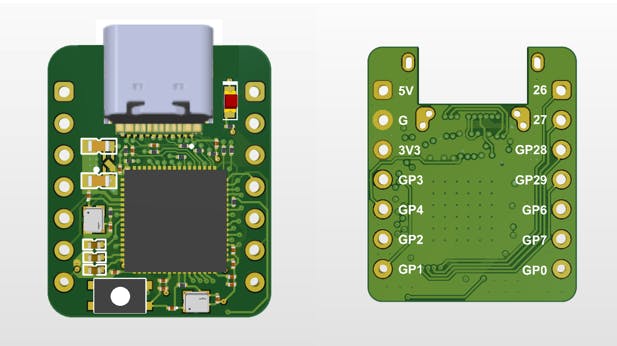

Experience Ethernet on the Pico with just one USB C-Type! Start Please refer to the above article on 'How to Use Ethernet with a C-Type Connector' for more information. Roughly speaking, the plan is to use Ethernet with the pinout mentioned above. In the project above, we combined WIZnet's W5500 with Raspberry Pi RP2040's Pico board to enable Ethernet functionality. And WIZnet has released the W55RP20, a chip that combines the RP2040 and W5500. This presents a great opportunity to reduce the size of the board. To minimize the size, most of the RLC components have been designed in 0201 size…
